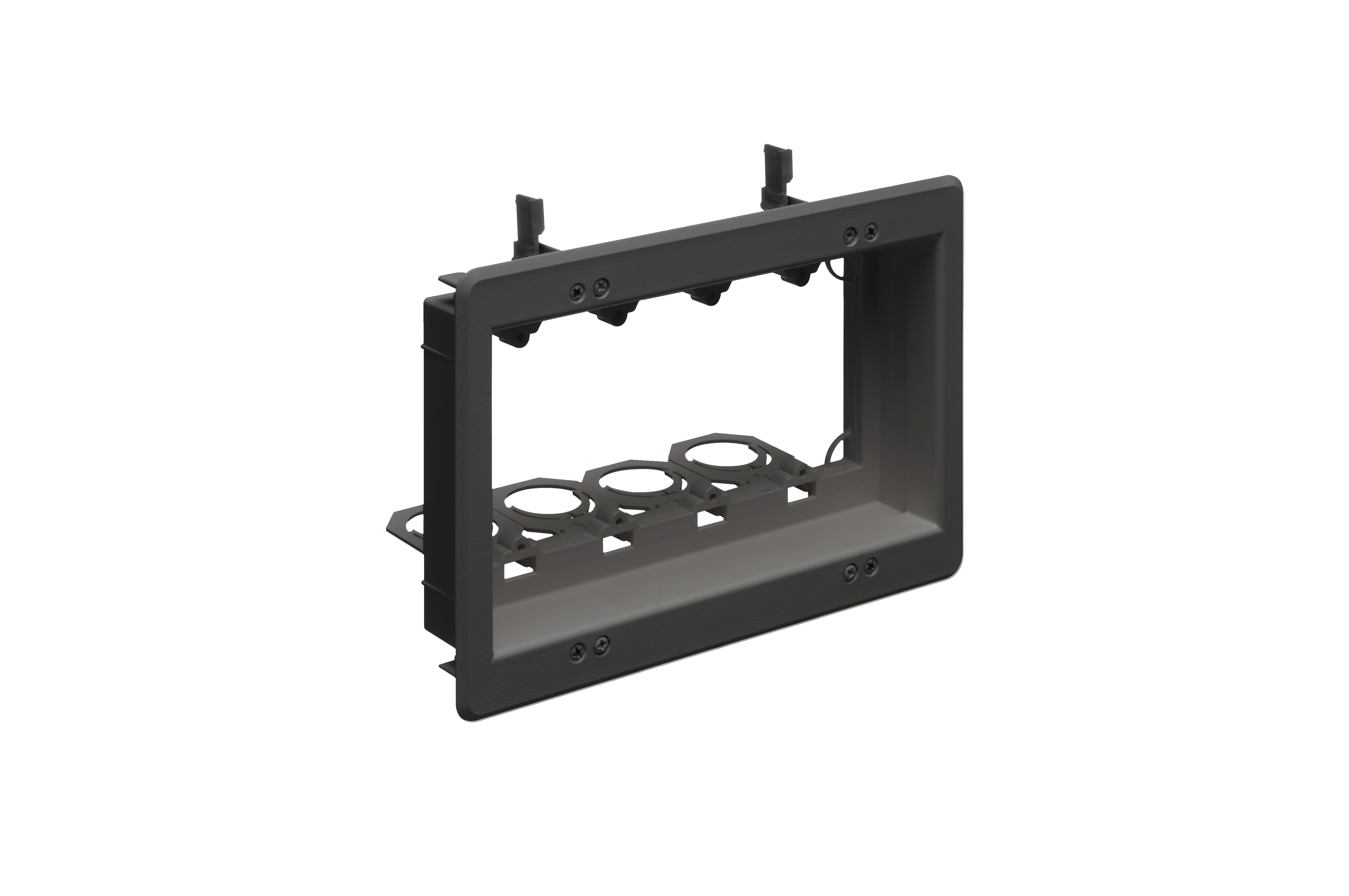

LVU4BL Product InformationRecessed Low-Voltage Mounting Bracket Catalog Page E-mail |
Basic Information
| Part Number | LVU4BL |
| Description | Arlington's recessed low voltage mounting brackets are great for keeping low voltage connectors recessed and out of the way. This non-metallic, four gang, black paintable bracket uses mounting wings to attach to walls 1/4" to 1-1/2" thick and can be used for retrofit or new construction. Designed for low voltage class 2 only. It is UL and CSA listed and comes with a recessed bracket, two attachable knockouts, one device plate, one trim plate, and four screws. |
| UPC | 018997200167 |
| Unit Packaging | 1pc |
| Standard Packaging | 1pc |
| Country of Origin |  |
| Listing |
|
Physical Information
| Instructional Video | LVU4BL Instructional Video |
| Weight | 0.854 lbs/each |
| Height | 6.818" |
| Width | 9.742" |
| Color |  Black |
| Material(s) | Paintable Plastic |
Technical Information
| Line Drawing | LVU4BL Line Drawing |
| Trade Size | 4-Gang |
| Usage | Quick and Easy Installation of Class 2 Low-Voltage Wiring Recessed in the Wall |
Comes With
| (1) | Trim Plate |
| (4) | Combination 3/4" and 1" Attachable Knockouts |
| (1) | Bracket |
| (1) | 4-Gang Decorator-Style / GFCI Wall Plate with screws |
| (2) | #8 x 3" Long Screws |
| (4) | #6-32 x 1/2" Long Screws |
