recessed TV box

TVBU810 Product Information

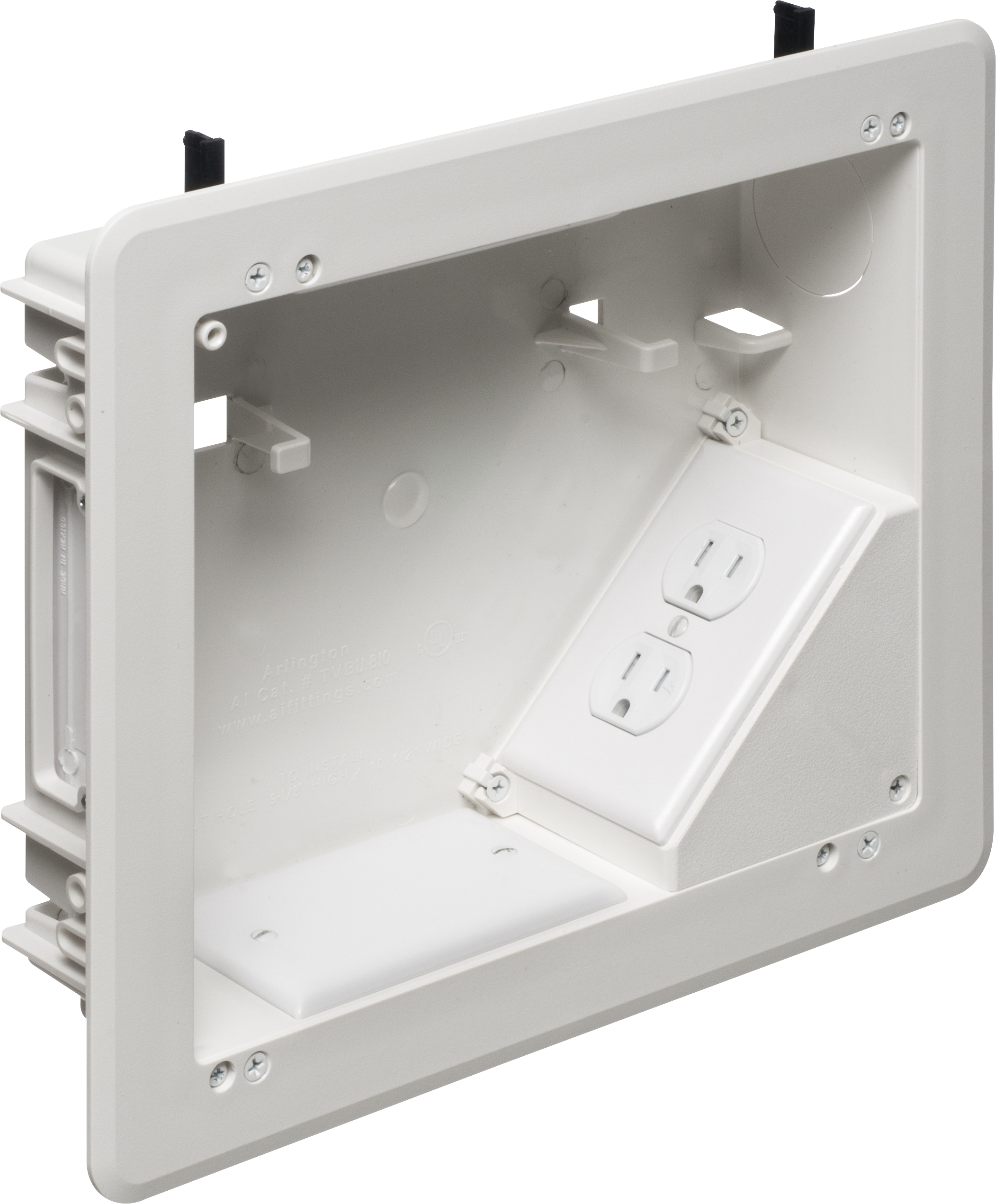

8" x 10" TV Box™ for Versatile Home Theater Installations
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number TVBU810
Description 8 x 10 Plastic TV BOX BRIDGE kit. Includes line voltage box, duplex receptacle. 1-1/2" knockout, cable entry device, wire management brackets. For new and old construction.
UPC-A 018997097583
Unit Packaging 1pc
Standard Packaging 1pc
Country of Origin
Listing

Physical Information

Instructional Video TVBU810 Instructional Video
Instruction Sheet TVBU810 Instruction Sheet
Weight1.828 lbs/each
Height10.656"
Width12.531"
Color White
Material(s)Plastic

Technical Information

Line Drawing TVBU810 Line Drawing
DescriptionNon-metallic power/low voltage box
Trade Size8" x 10"

Comes With

(1)TVBU810 Frame
(1)TVBU810 Box
(1)Tamper-Resistant Duplex Receptacle
(1)Single-Gang Wall Plate with screw(s)
(3)Single-Gang Blank Wall Plates with screws
(1)Receptacle Mounting Bracket
(1)NM Snap-In Blank
(1)NM Cable Connector
(1)CED130 Insert
(7)#8-32 x 1/2" Long Screws
