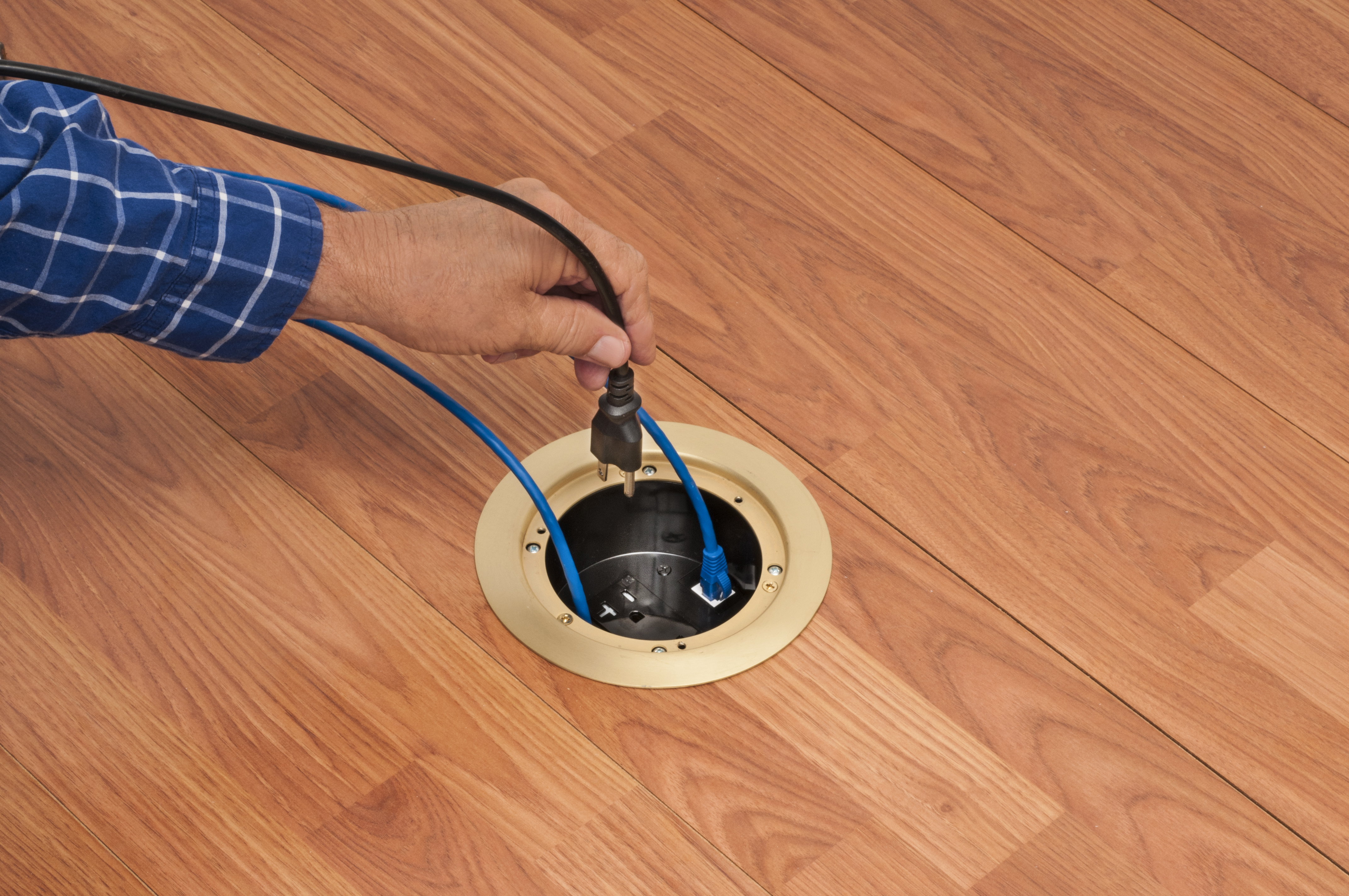

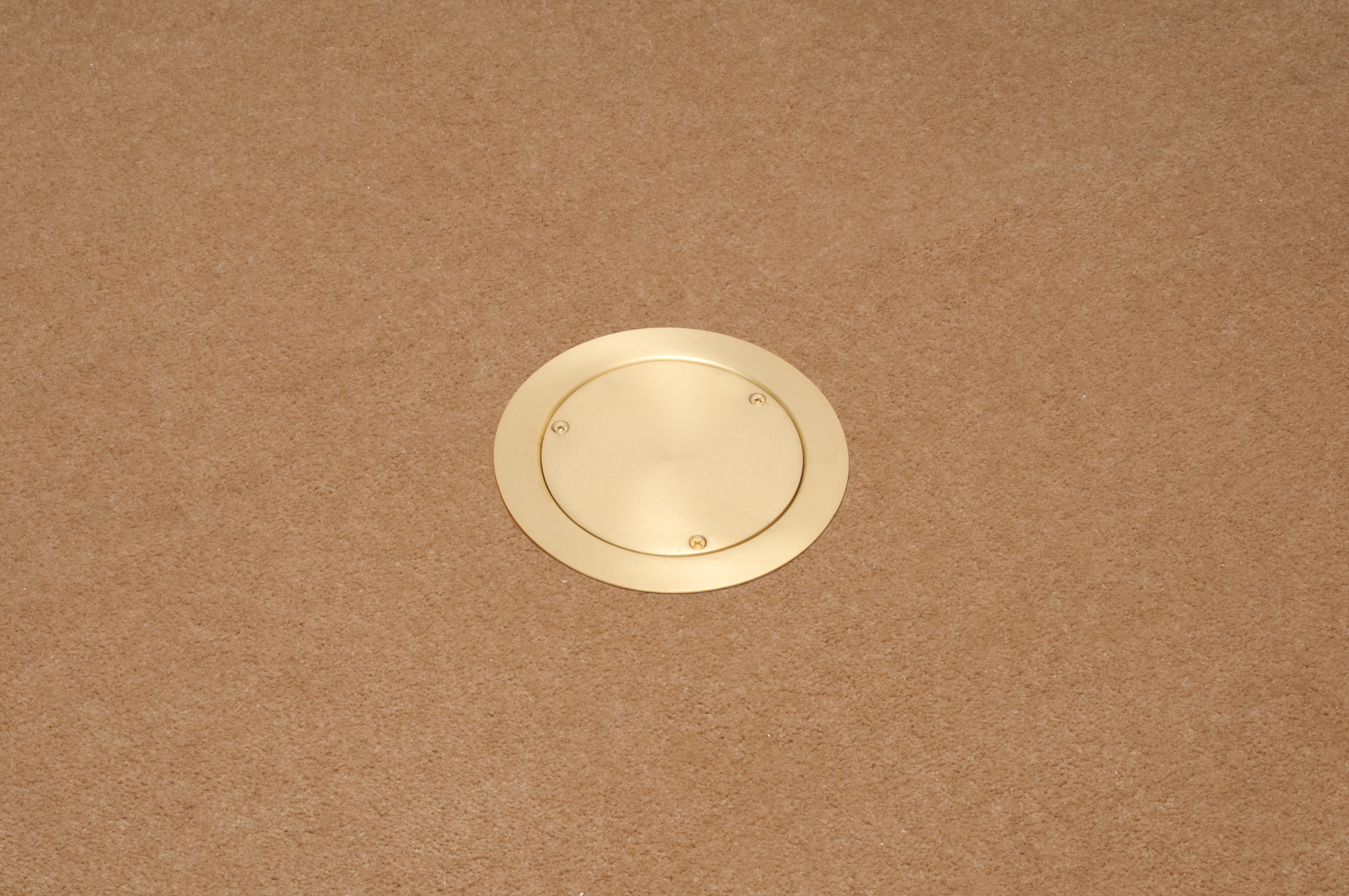

FLBR5420MB Product InformationTWO low voltage openings with built-in divider, an ultra-thin stamped steel flange, and flush-to-the-floor in-use and blank covers. Specification SheetCatalog Page E-mail |
Additional Images
Basic Information
| Part Number | FLBR5420MB |
| Description | TWO low voltage openings with built-in divider, an ultra-thin stamped steel flange, and flush-to-the-floor in-use and blank covers. Has a brass plated finish. |
| UPC | 018997211910 |
| Unit Packaging | 1pc |
| Standard Packaging | 1pc |
| Country of Origin |  |
| Listing |
|
Physical Information
| Instructional Video | FLBR5420MB Instructional Video |
| Instruction Sheet | FLBR5420MB Instruction Sheet |
| Weight | 2.350 lbs/each |
| Height | 6.550" |
| Width | 6.625" |
| Color | Brass-plated |
| Material(s) | Zinc (cover), Steel (flange), Plastic (box) |
Technical Information
| Line Drawing | FLBR5420MB Line Drawing |
| Cubic Inches | 24.5 |
| Trade Size | 1-Gang, 2 LV Ports |
| Usage | Existing floors |

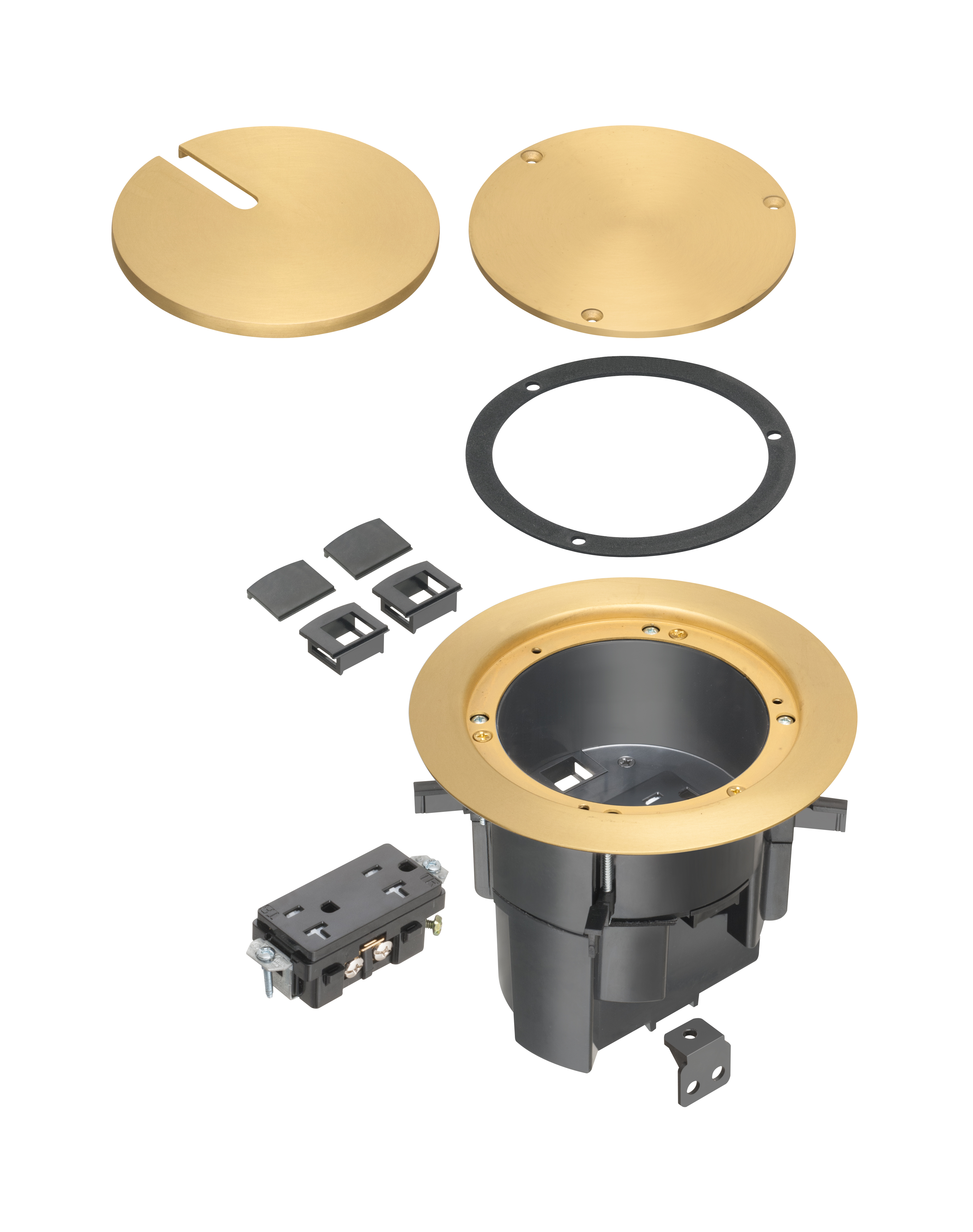

Comes With

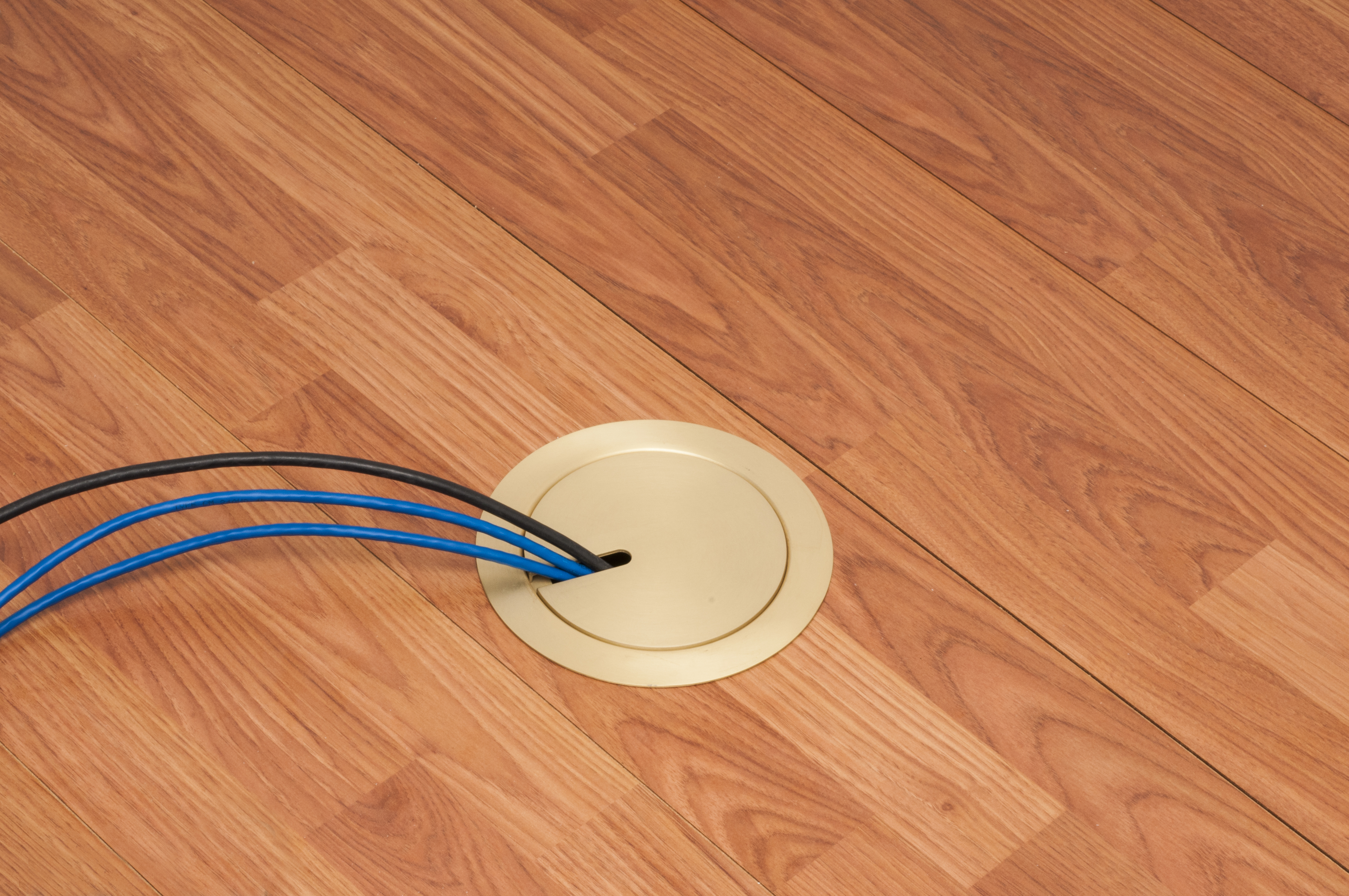

| (1) | Slotted cover |
| (1) | NM94 Cable Connector |
| (2) | Low-voltage tie-off brackets |
| (2) | Low-voltage keystone holder inserts |
| (2) | Low-voltage blank inserts |

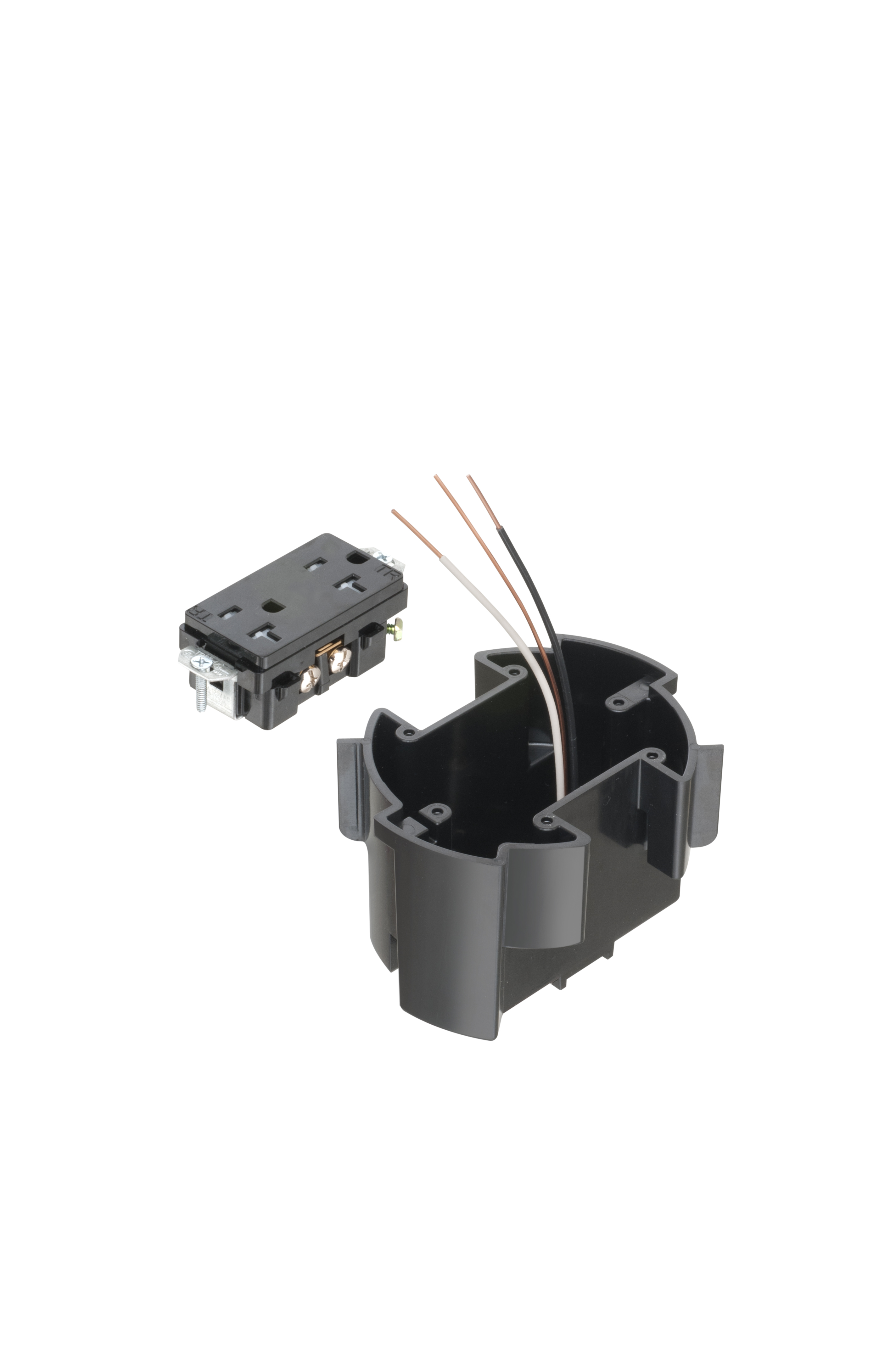

| (1) | Box |

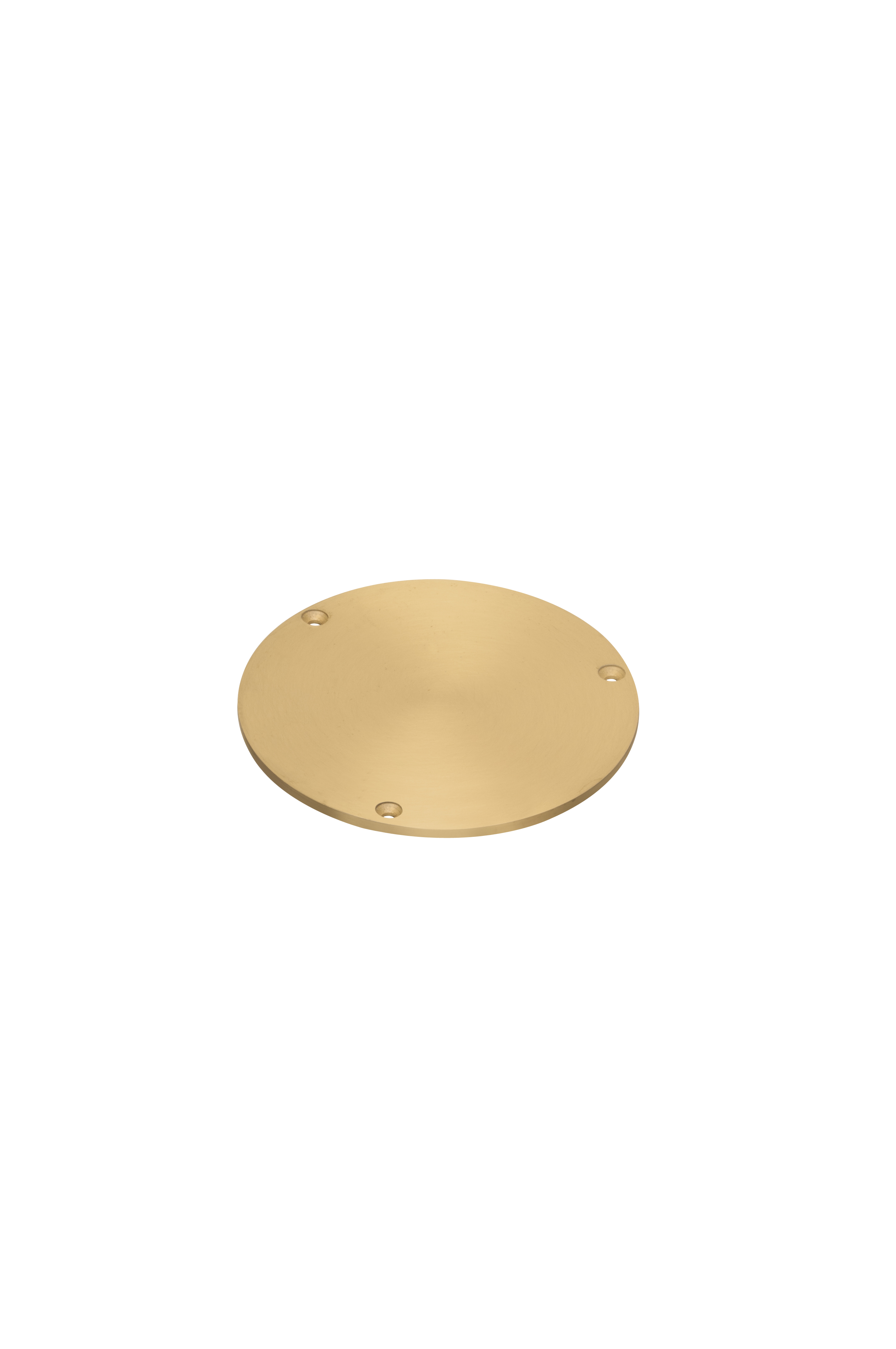

| (1) | Blank cover with gasket |

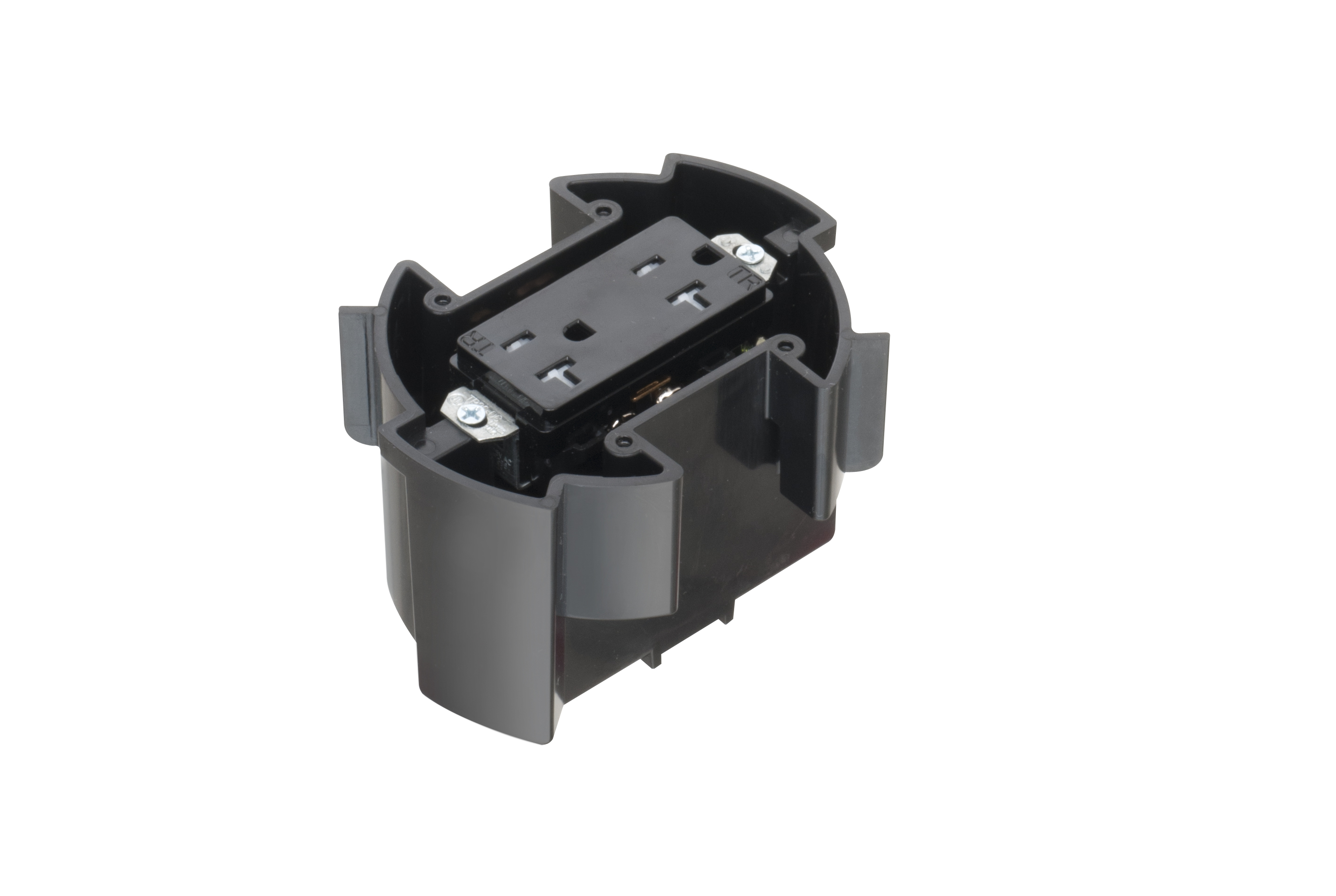

| (1) | 20A Tamper-Resistant Decorator-Style Duplex Receptacle |
| (3) | #8 x 5/8" Long Screws |
| (2) | #8 x 1/2" Long Sheet Metal Screws |
