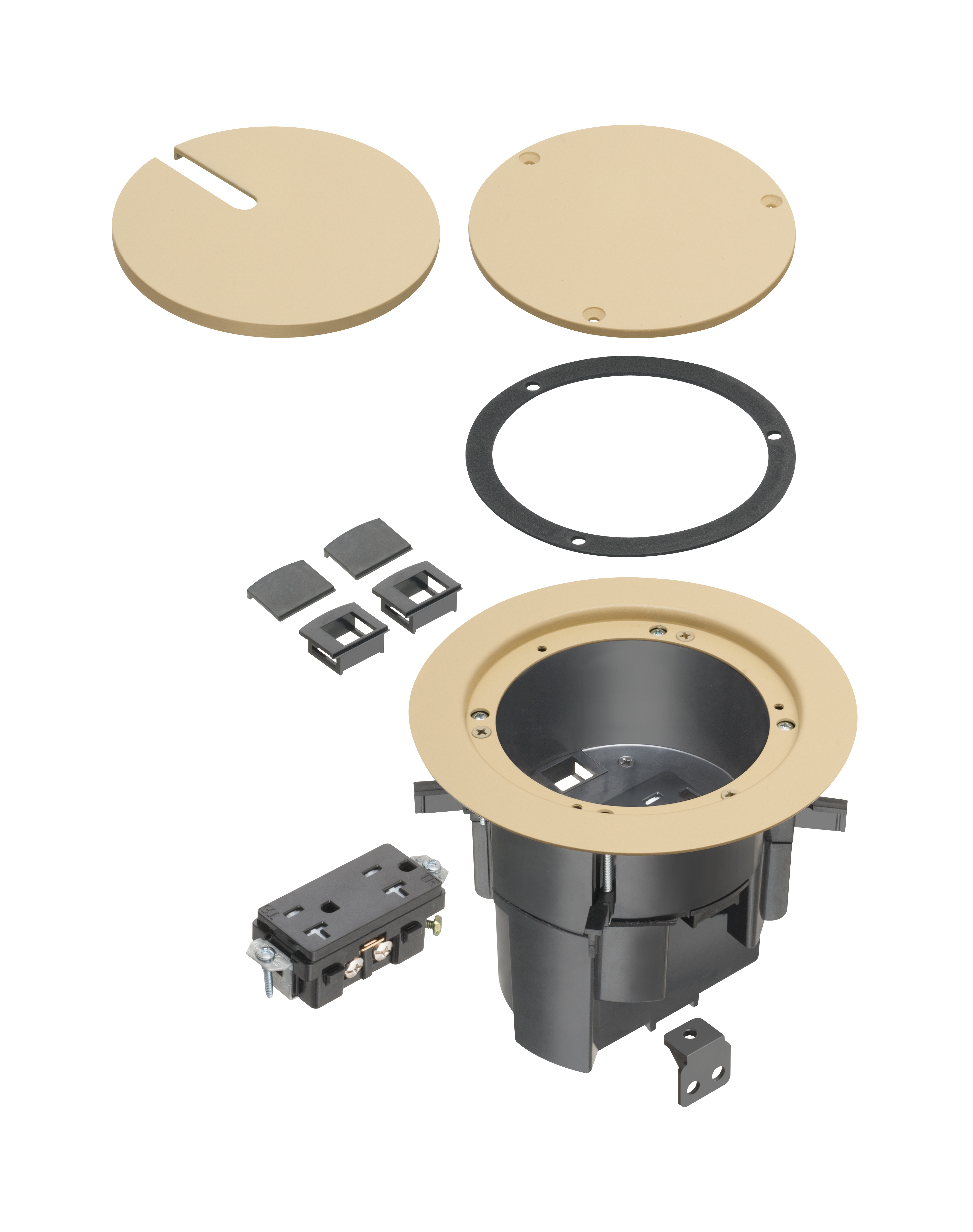

exploded view of components included in in-box recessed floor box kit

FLBR5420LA Product Information

TWO low voltage openings with built-in divider, an ultra-thin stamped steel flange, and flush-to-the-floor in-use and blank covers.

Specification Sheet Catalog Page E-mail

Additional Images

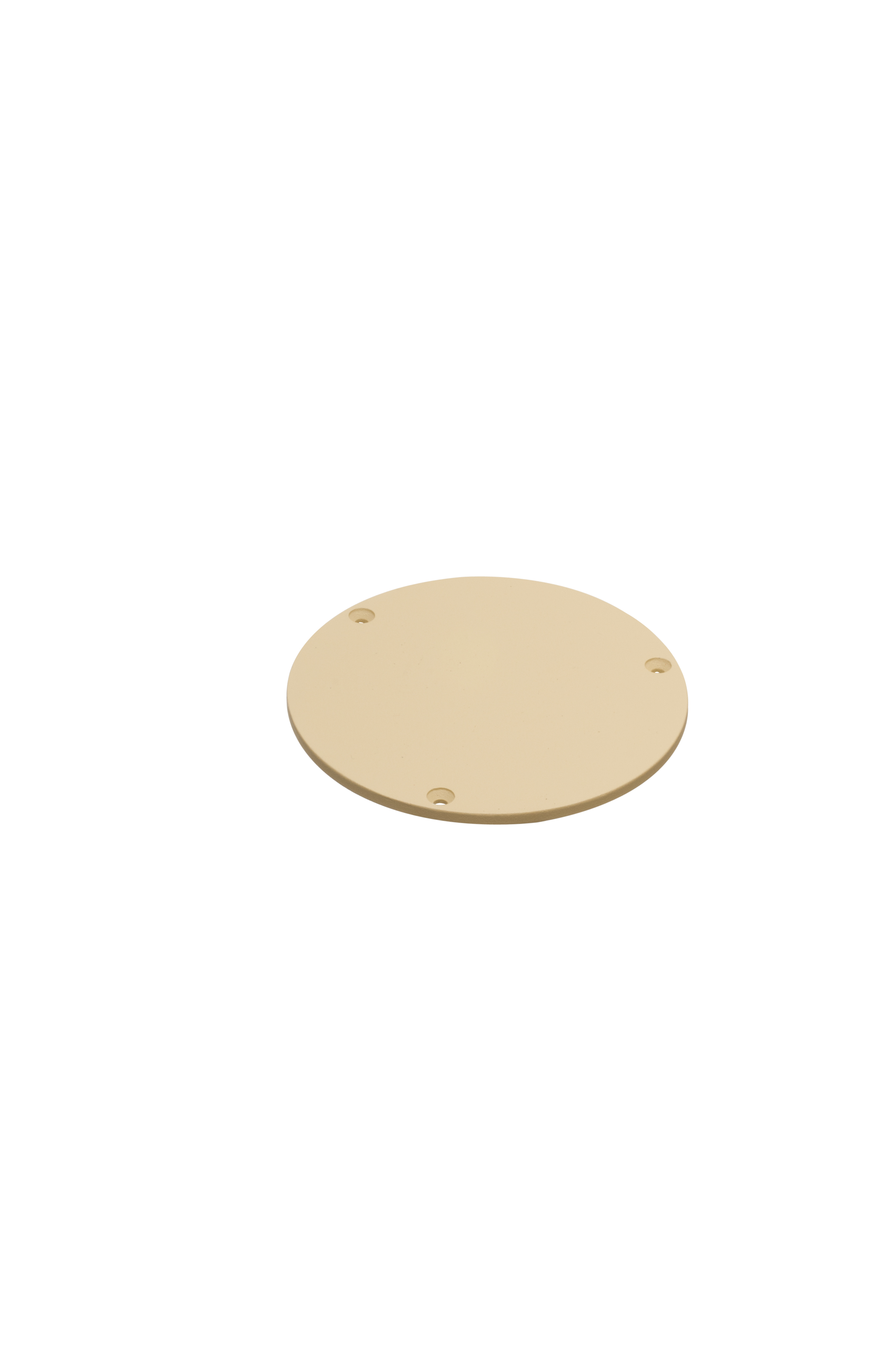

round blank cover

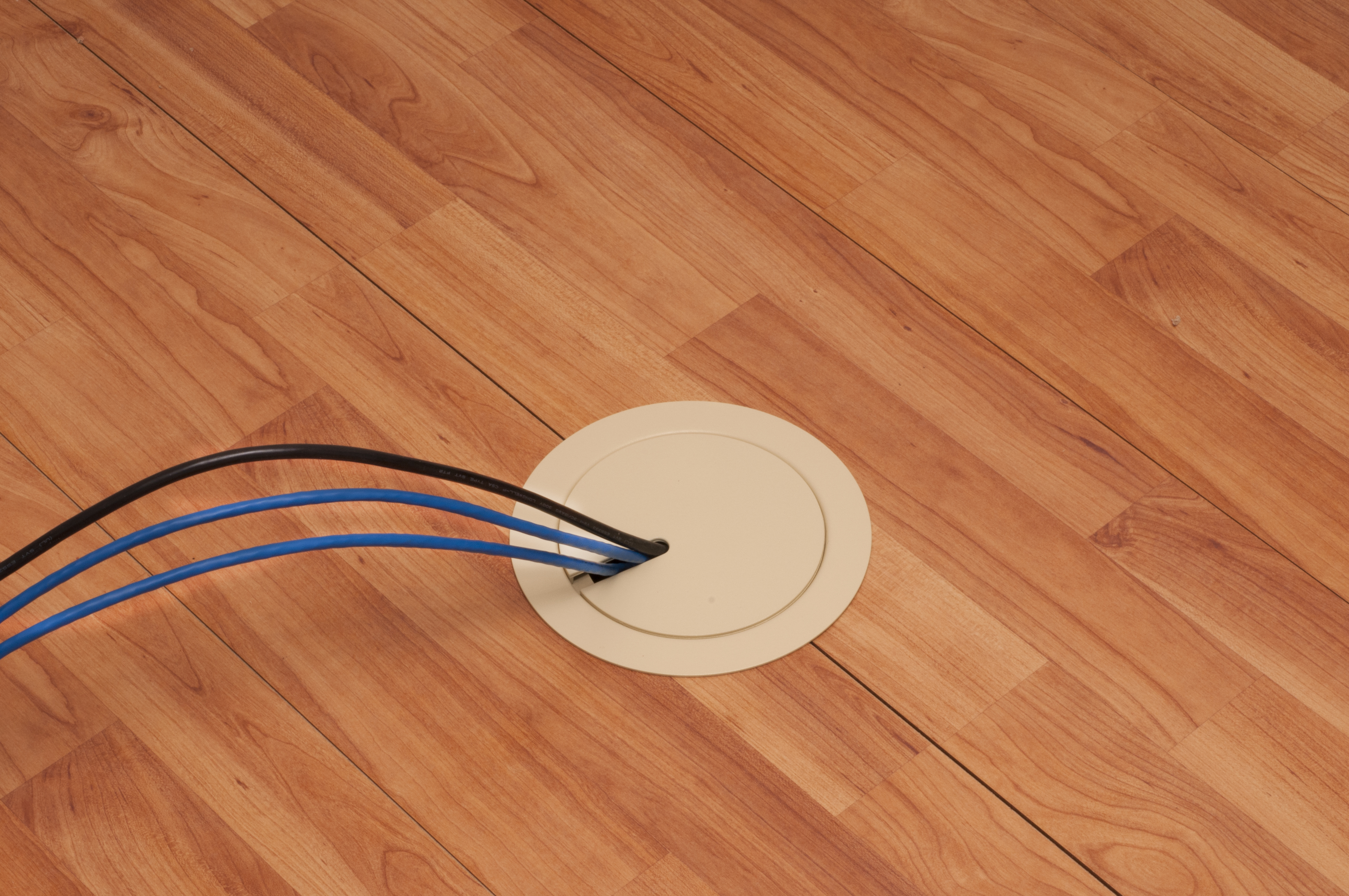

in-box recessed floor box with in use cover and wires exiting box

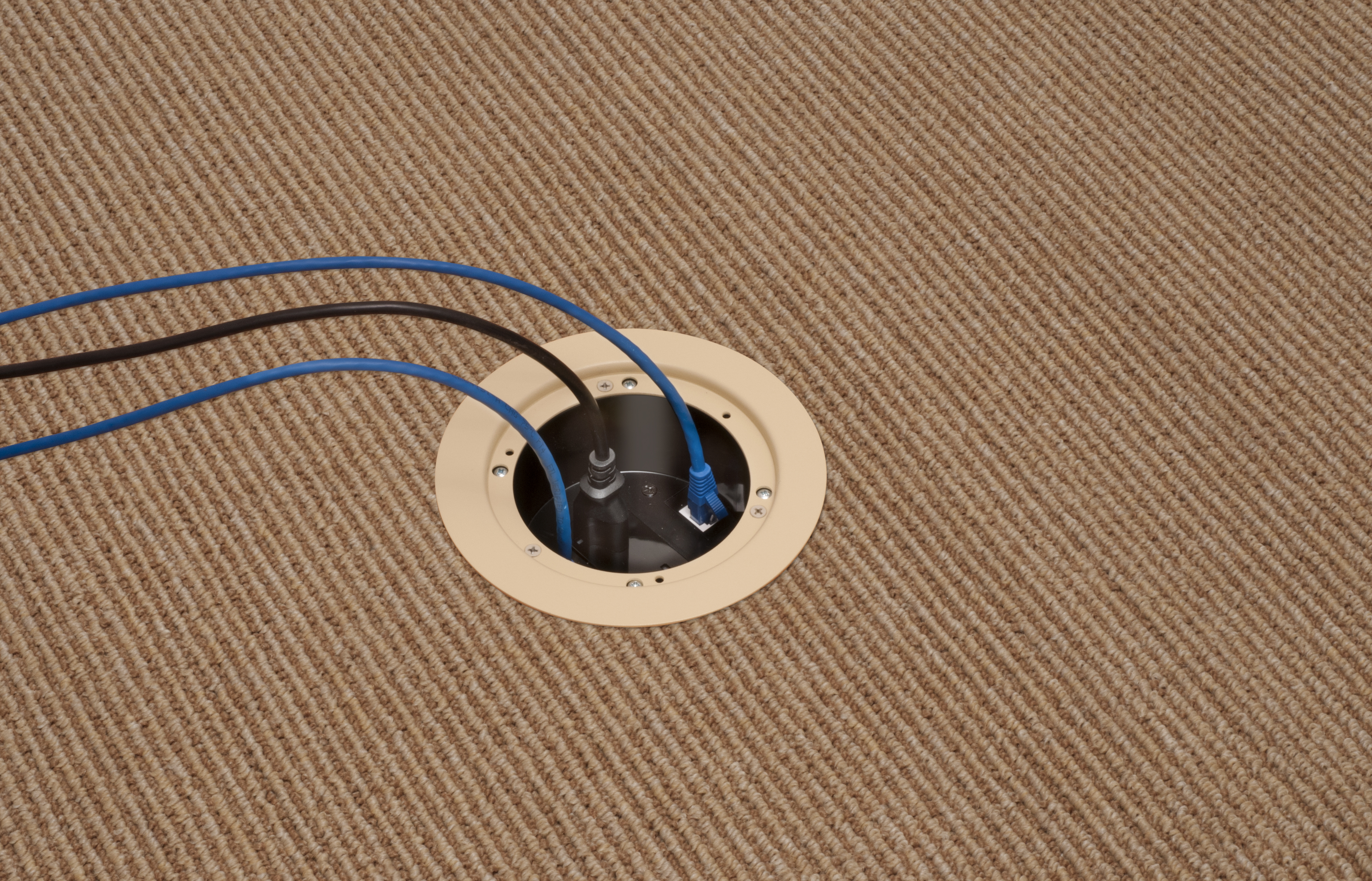

in-box recessed floor box with devices plugged in

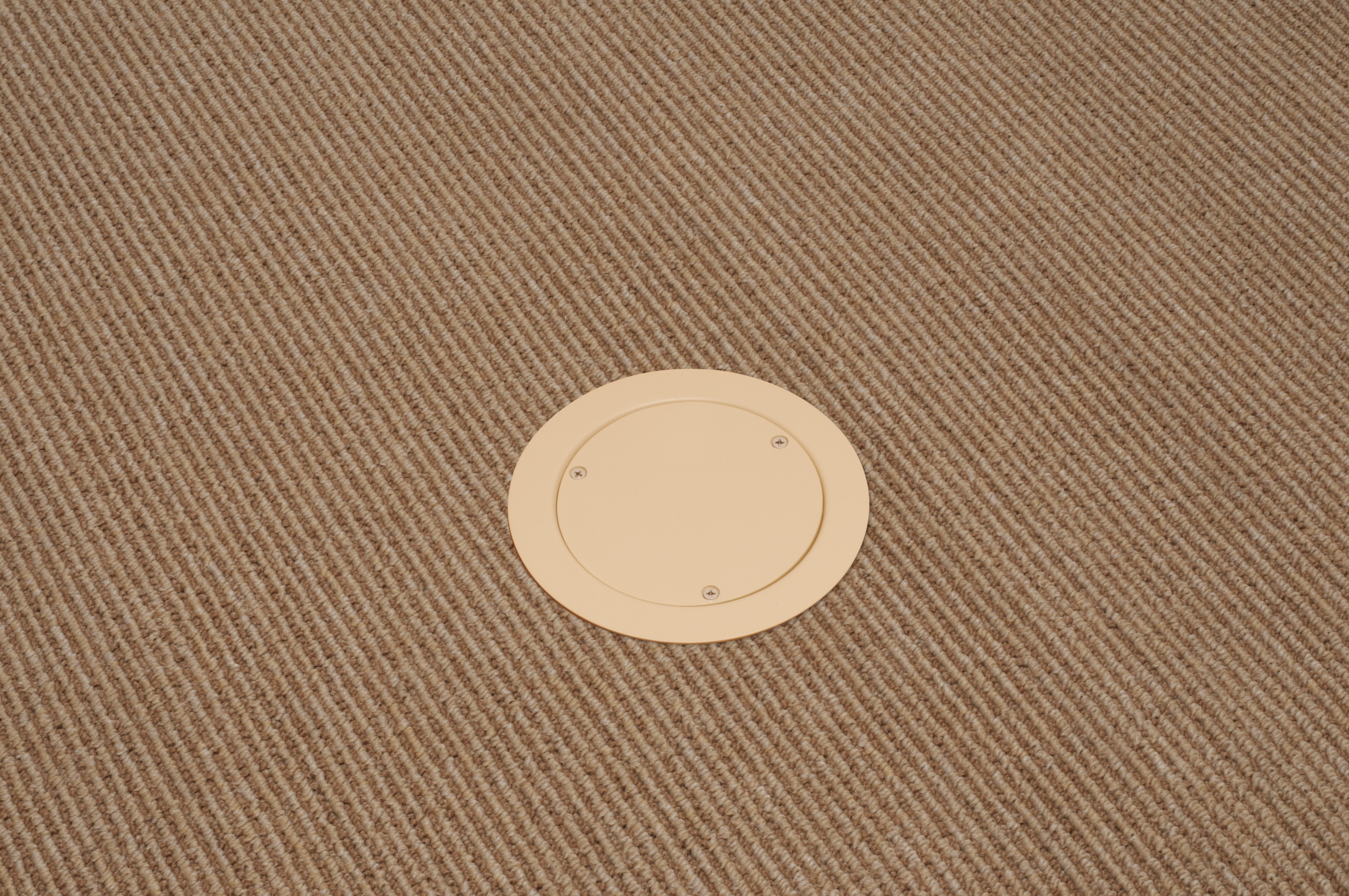

in-box recessed floor box with blank cover in carpeted floor

Basic Information

Part Number	FLBR5420LA
Description	TWO low voltage openings with built-in divider, an ultra-thin stamped steel flange, and flush-to-the-floor in-use and blank covers. Has a light almond powder-coated finish.
UPC	018997212689
Unit Packaging	1pc
Standard Packaging	1pc
Country of Origin
Listing

Physical Information

Instructional Video	FLBR5420LA Instructional Video
Instruction Sheet	FLBR5420LA Instruction Sheet
Weight	2.250 lbs/each
Height	6.550"
Width	6.625"
Color	Light Almond
Material(s)	Zinc (cover), Steel (flange), Plastic (box)

Technical Information

Line Drawing	FLBR5420LA Line Drawing
Cubic Inches	24.5
Trade Size	1-Gang, 2 LV Ports
Usage	Existing floors

Comes With

(1)	Slotted cover
(1)	NM94 Cable Connector
(2)	Low-voltage tie-off brackets
(2)	Low-voltage keystone holder inserts
(2)	Low-voltage blank inserts
(1)	Box
(1)	Blank cover with gasket
(1)	20A Tamper-Resistant Decorator-Style Duplex Receptacle
(3)	#8 x 5/8" Long Screws
(2)	#8 x 1/2" Long Sheet Metal Screws
