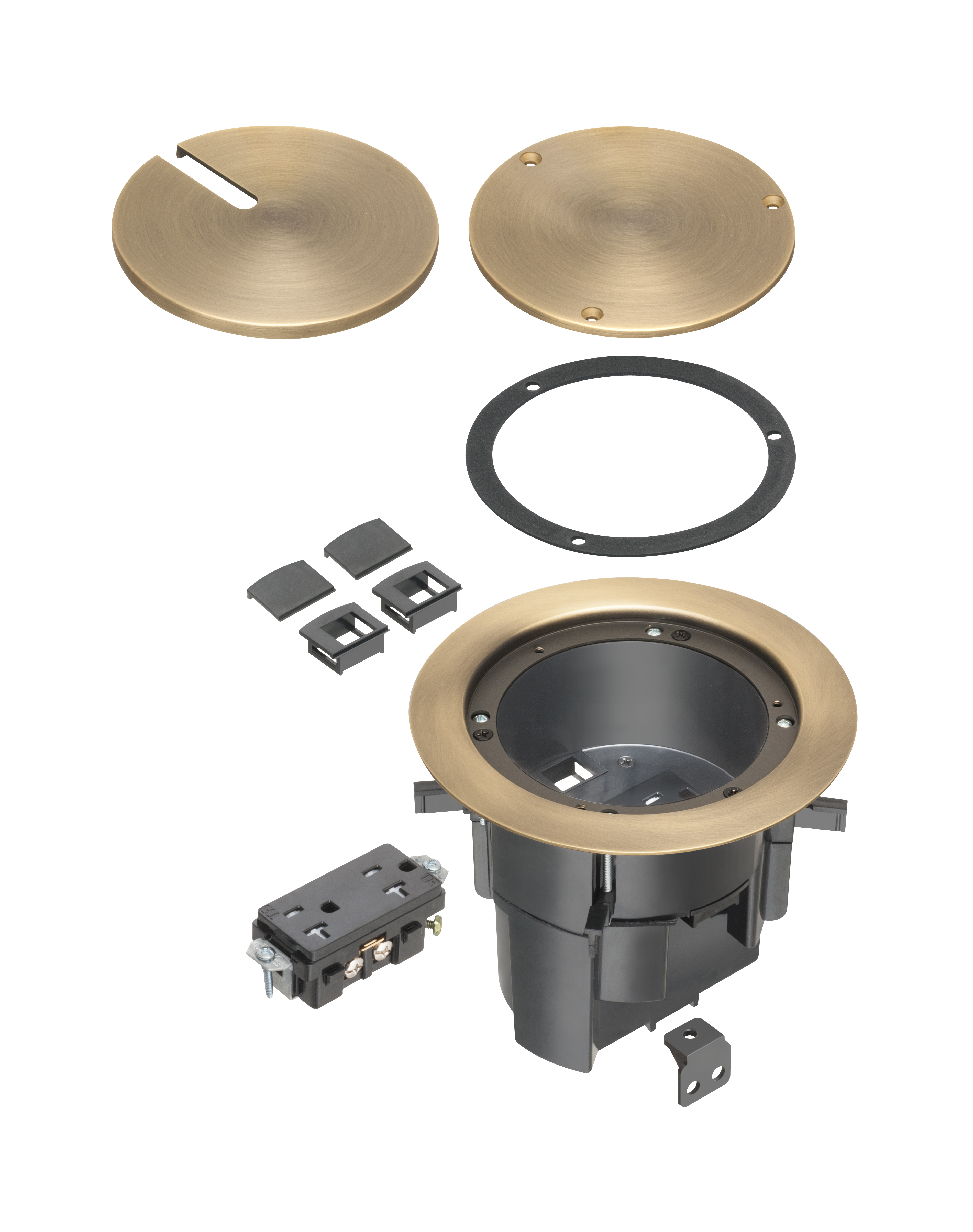

exploded view of components included in in-box recessed floor box kit

FLBR5420AB Product Information

TWO low voltage openings with built-in divider, an ultra-thin stamped steel flange, and flush-to-the-floor in-use and blank covers.
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number FLBR5420AB
Description TWO low voltage openings with built-in divider, an ultra-thin stamped steel flange, and flush-to-the-floor in-use and blank covers. In a black powder-coated finish. Has an antique bronze plated finish.
UPC 018997212696
Unit Packaging 1pc
Standard Packaging 1pc
Country of Origin
Listing

Physical Information

Instructional Video FLBR5420AB Instructional Video
Instruction Sheet FLBR5420AB Instruction Sheet
Weight2.350 lbs/each
Height6.550"
Width6.625"
ColorAntique Bronze-plated
Material(s)Zinc (cover), Steel (flange), Plastic (box)

Technical Information

Line Drawing FLBR5420AB Line Drawing
Cubic Inches24.5
Trade Size1-Gang, 2 LV Ports
UsageExisting floors

Comes With

(1)Slotted cover
(1)NM94 Cable Connector
(2)Low-voltage tie-off brackets
(2)Low-voltage keystone holder inserts
(2)Low-voltage blank inserts
(1)Box

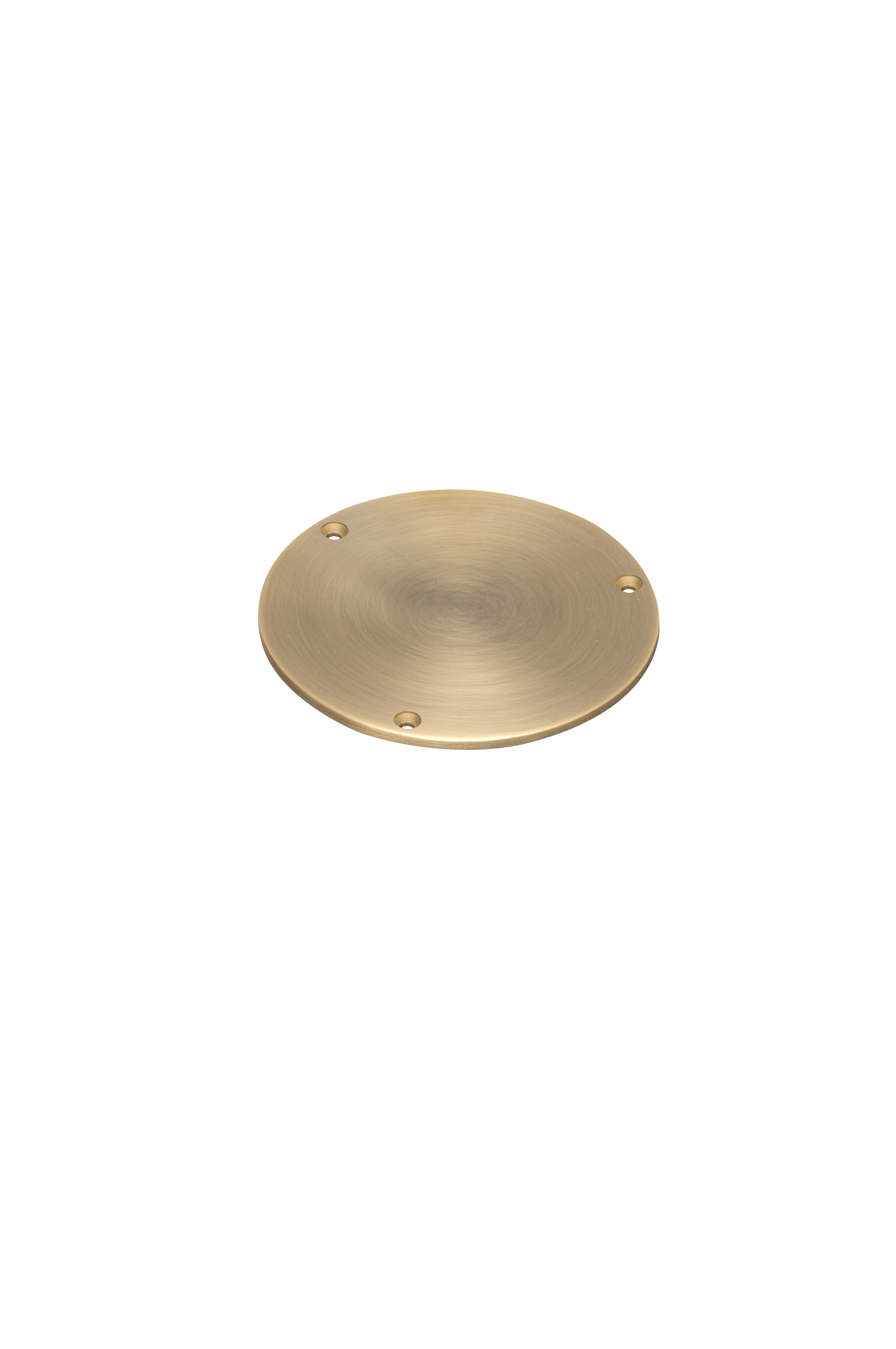

(1)Blank cover with gasket
(1)20A Tamper-Resistant Decorator-Style Duplex Receptacle
(3)#8 x 5/8" Long Screws
(2)#8 x 1/2" Long Sheet Metal Screws
