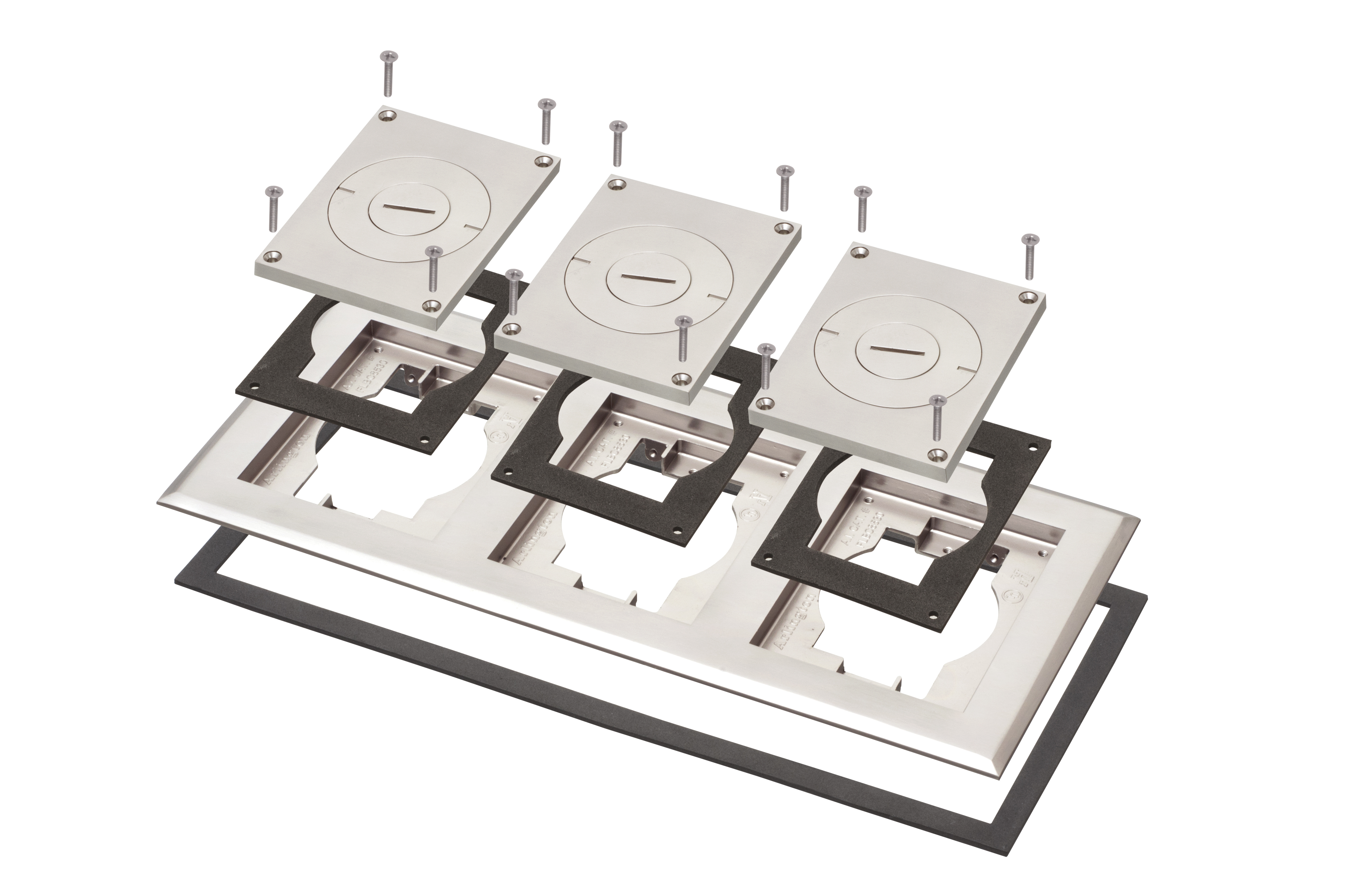

exploded view of three gang floor box cover kit

FLBC8533NL Product Information

Three Gang Frame
Specification SheetCatalog Page E-mail

Additional Images

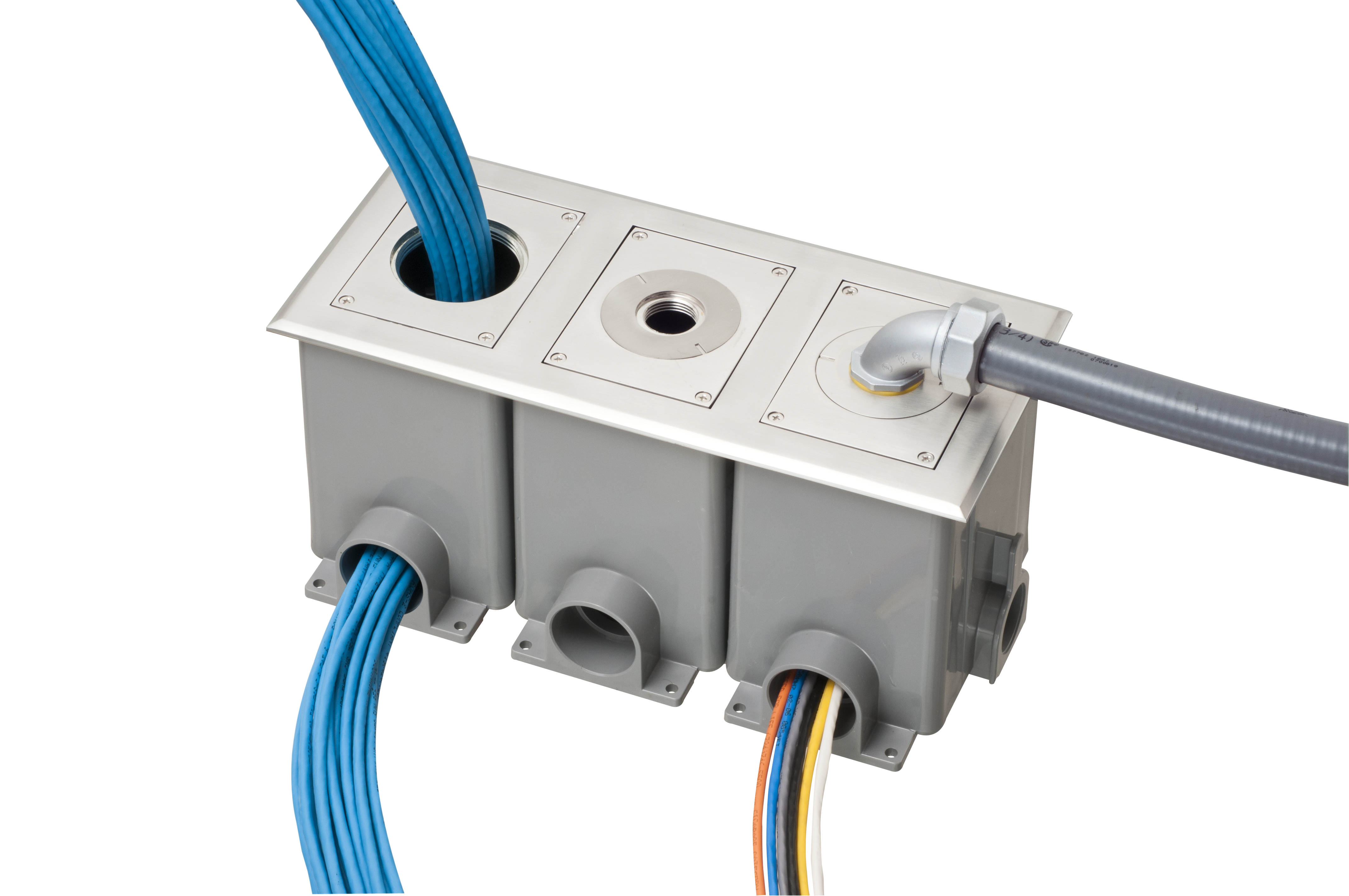

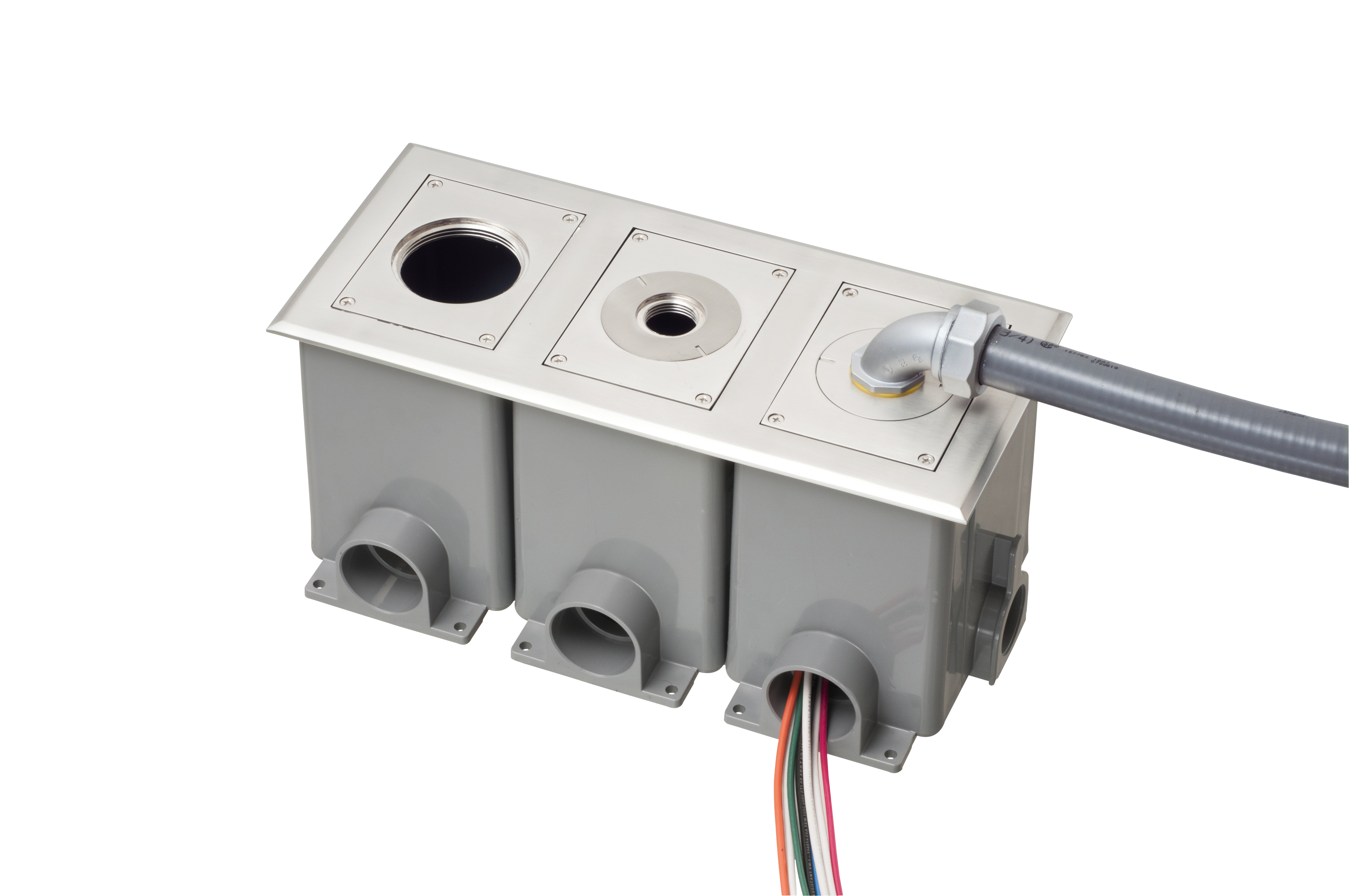

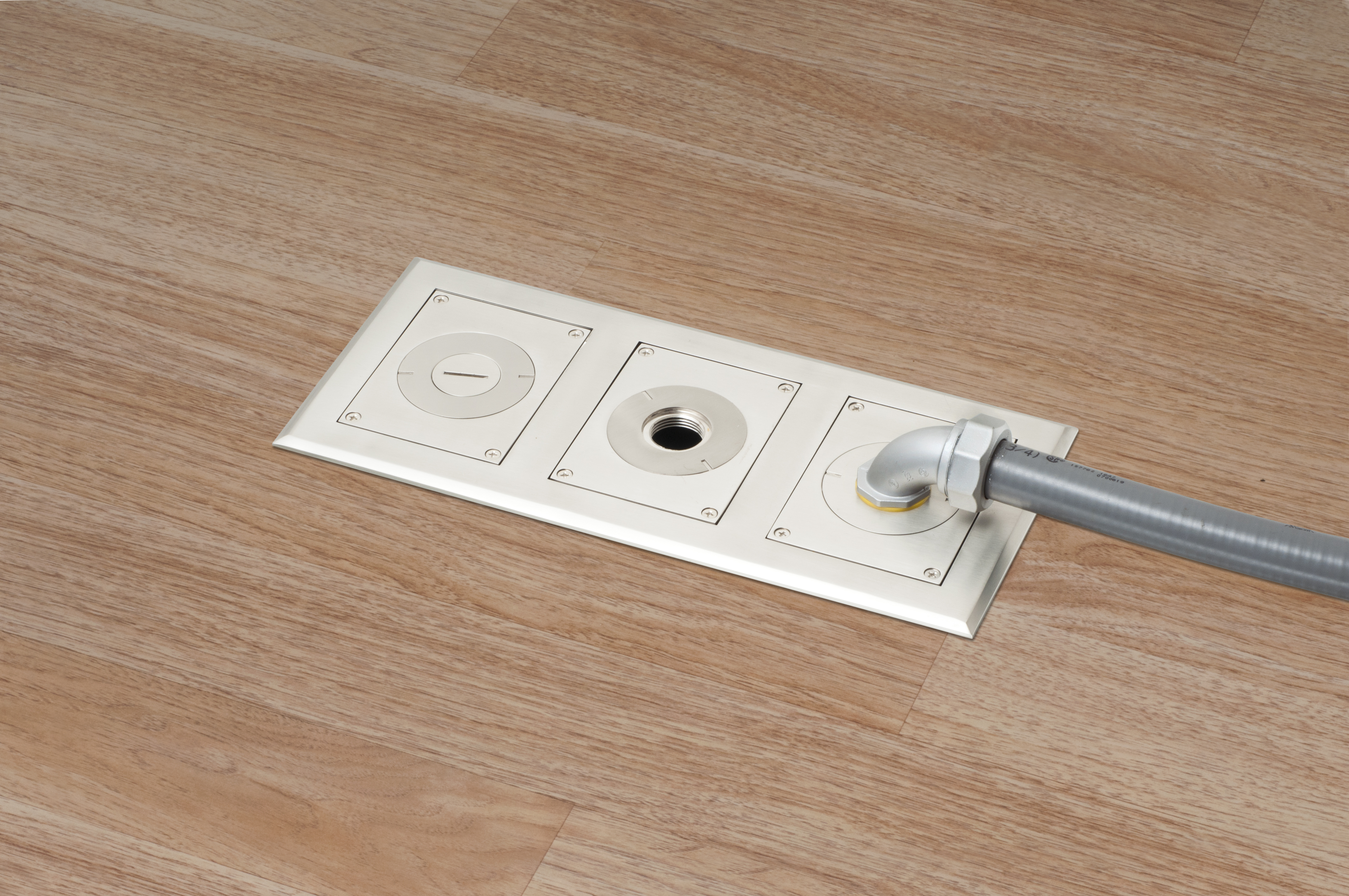

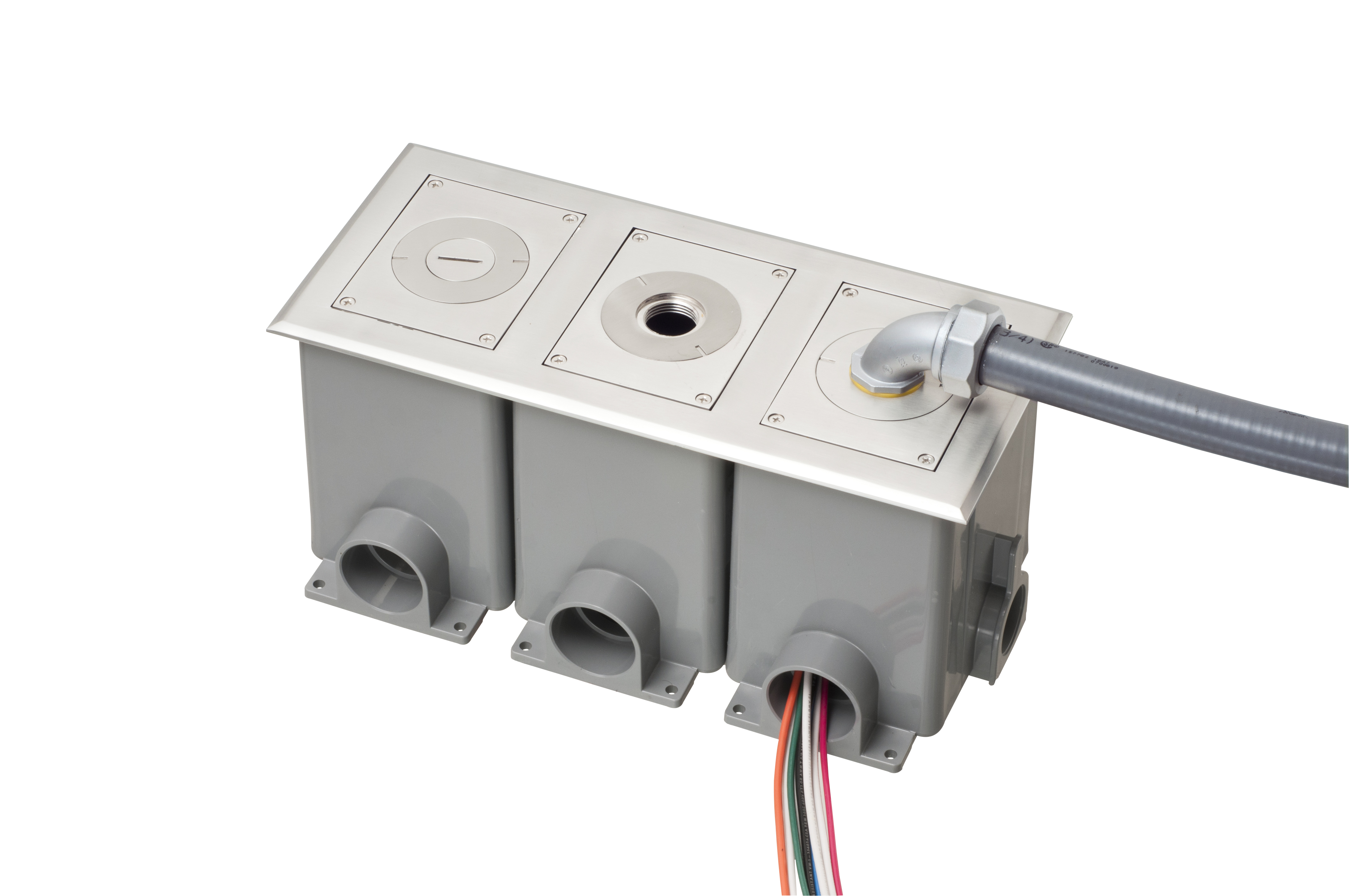

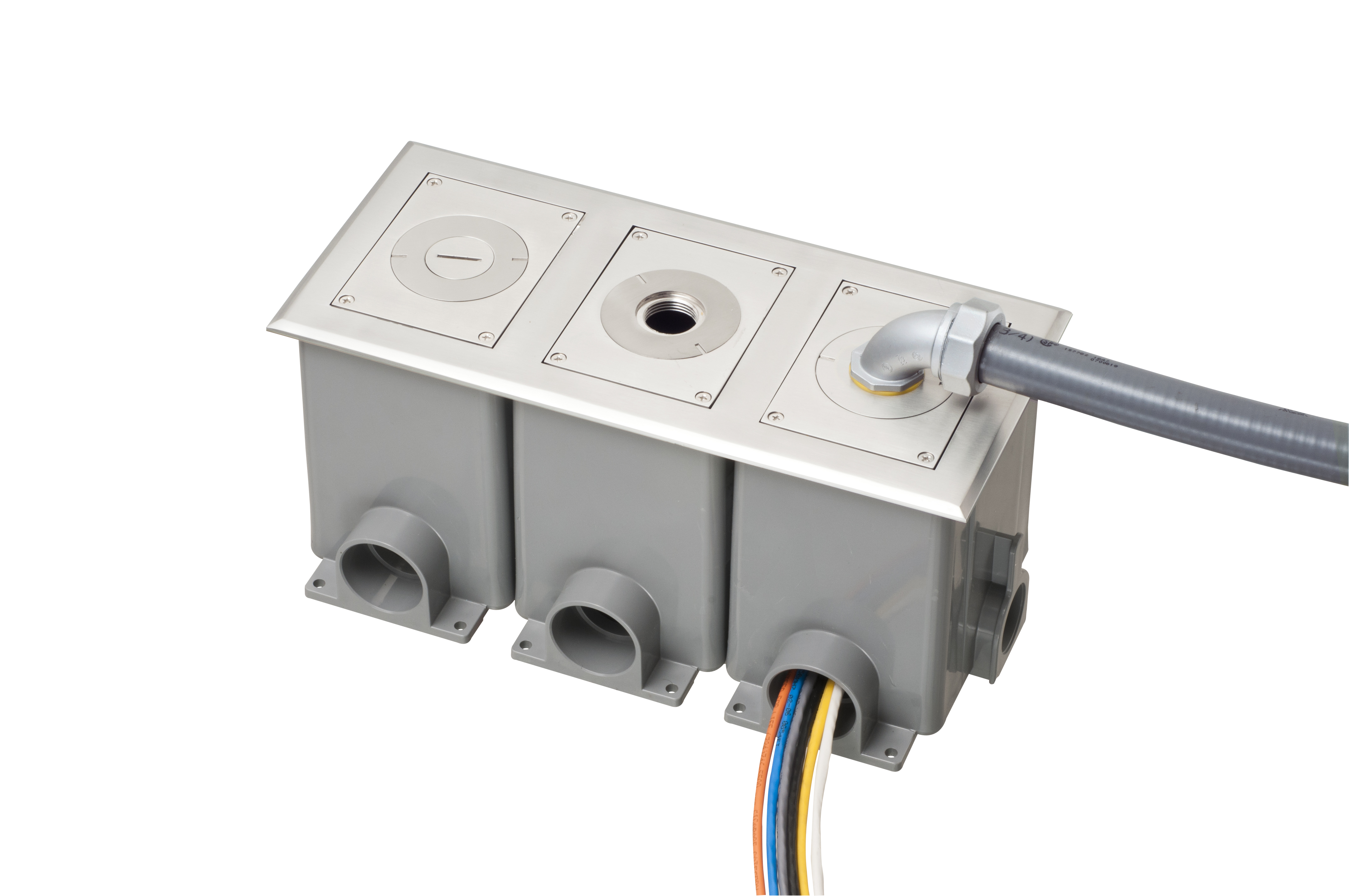

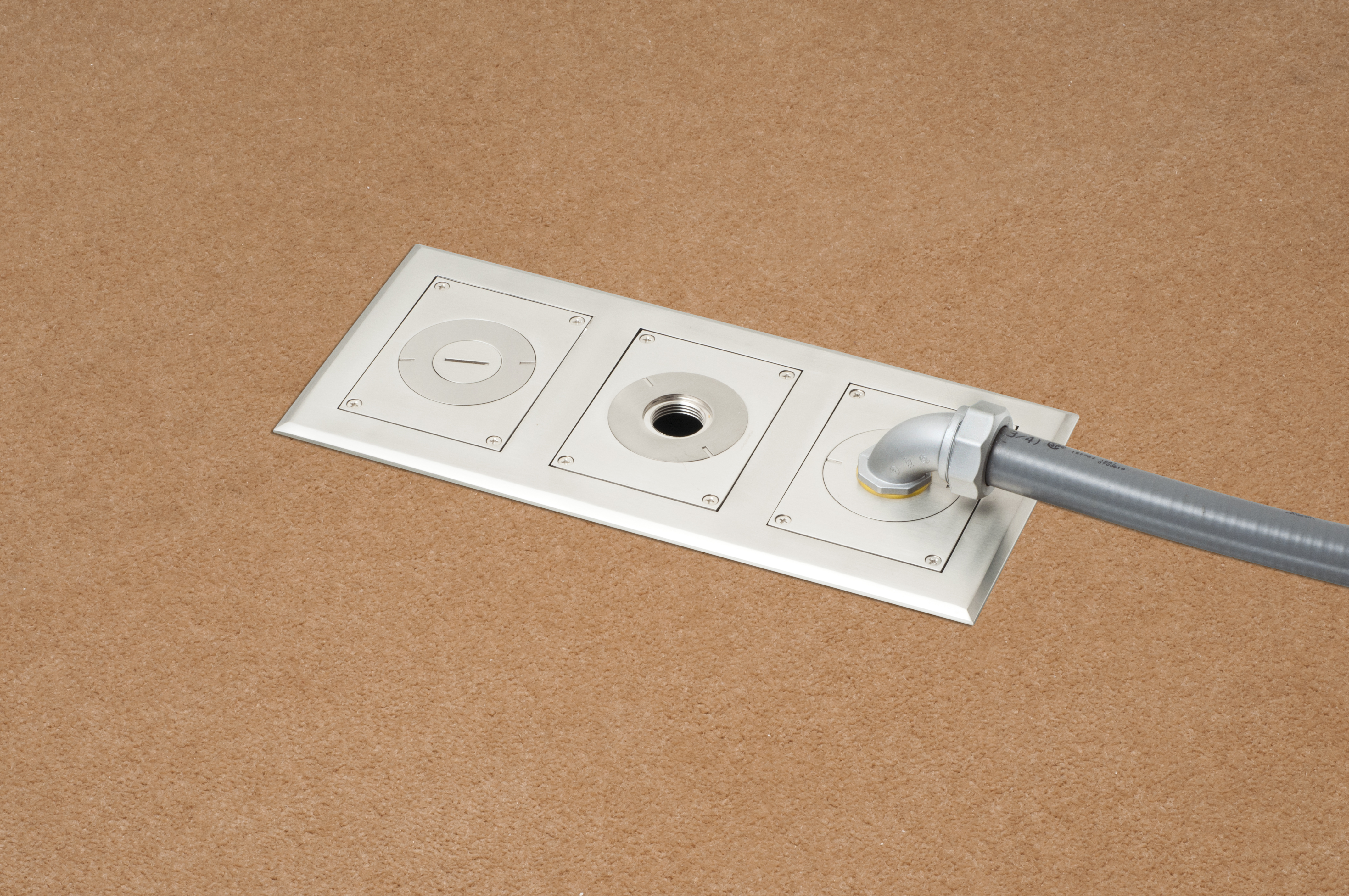

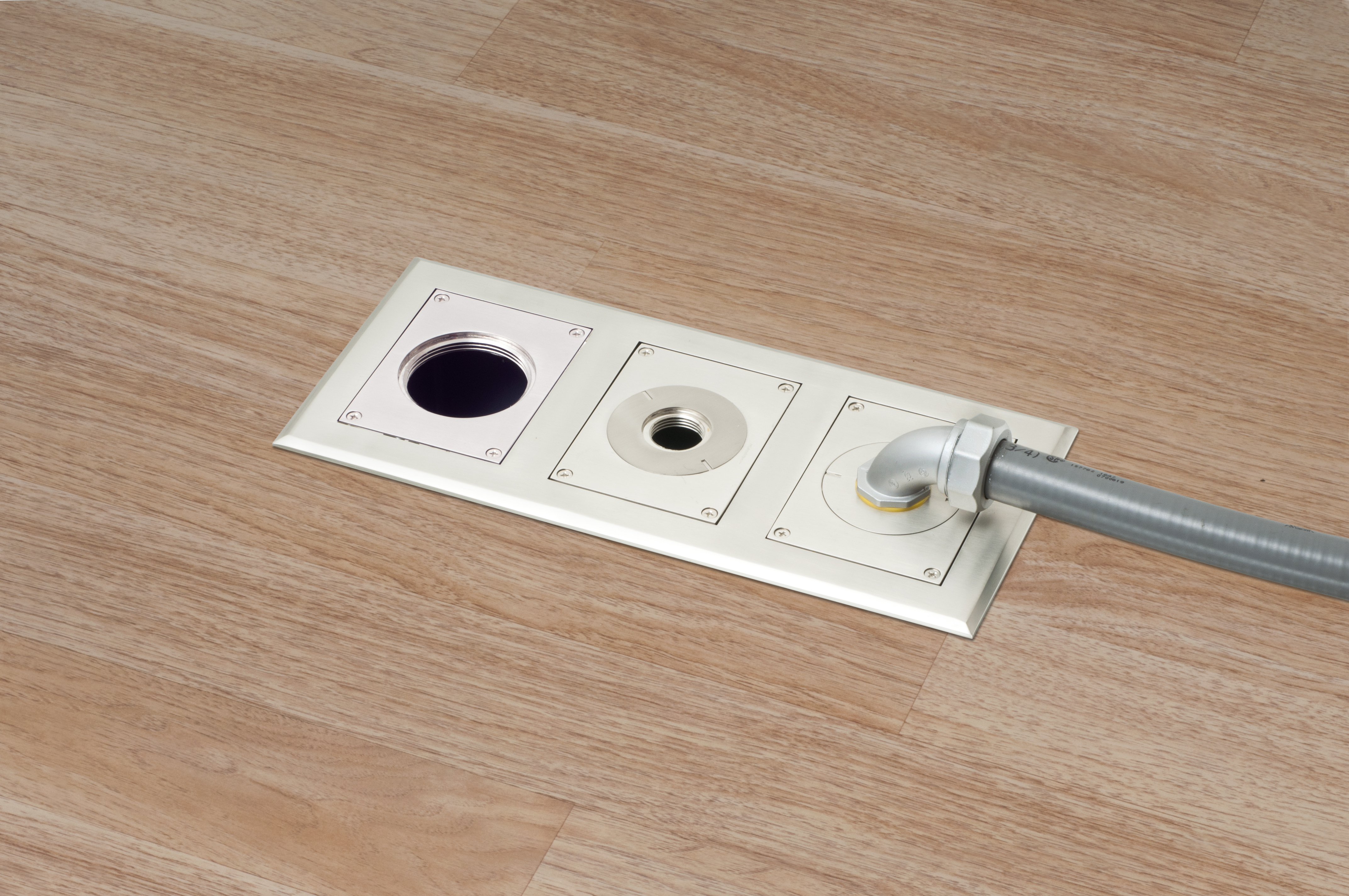

three gang frame installed on concrete floor boxes three gang floor box with 90 degree connector and conduit attached three gang floor box with 90 degree connector and conduit attached three gang floor box with 90 degree connector and conduit attached three gang floor box with 90 degree connector and conduit attached three gang floor box with 90 degree connector and conduit attached three gang floor box with 90 degree connector and conduit attached three gang floor box with cables running through box three gang floor box with cables running through box three gang floor box in wooden floor with 90 degree connector and conduit attached three gang floor box in wooden floor with 90 degree connector and conduit attached three gang floor box in wooden floor with 90 degree connector and conduit attached three gang floor box in tiled floor with 90 degree connector and conduit attached three gang floor box in wooden floor with cables running through box

Basic Information

Part Number FLBC8533NL
Description Plated Nickel, three gang frame and cover with furniture feed inserts. Includes three gang frame with gasket, (3) gasketed covers with combo 2" and 3/4" threaded holes and mounting screws.
UPC 018997208262
Unit Packaging 1pc
Standard Packaging 1pc
Listing

Physical Information

Weight4.400 lbs/each
Height6.094"
Width13.543"
ColorNickel
Material(s)Zinc

Technical Information

Line Drawing FLBC8533NL Line Drawing
IncludesThree gang frame with gasket, (3) gasketed covers with (2) combo 2" and 3/4" threaded holes in each, and (4) mounting screws
Trade Size3-Gang
