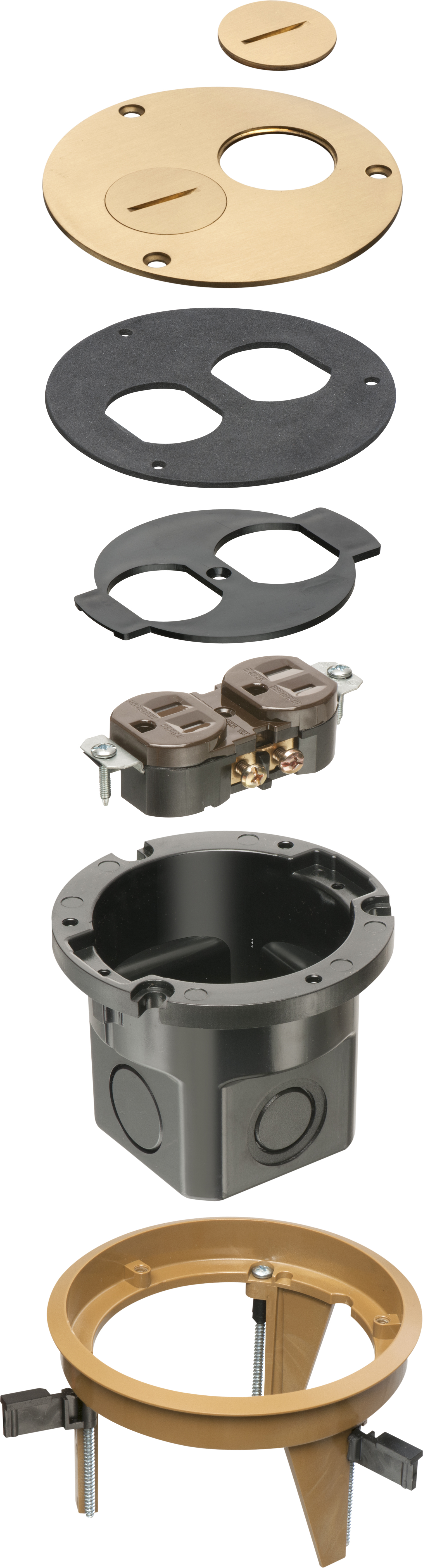

exploded view of components included in floor box kit

FLB4362MB Product Information

Arlingtons DROPIN™ FLOOR BOX KITS offer the fastest way to install a box nearly flush in an EXISTING floor.

Specification Sheet Catalog Page E-mail

Additional Images

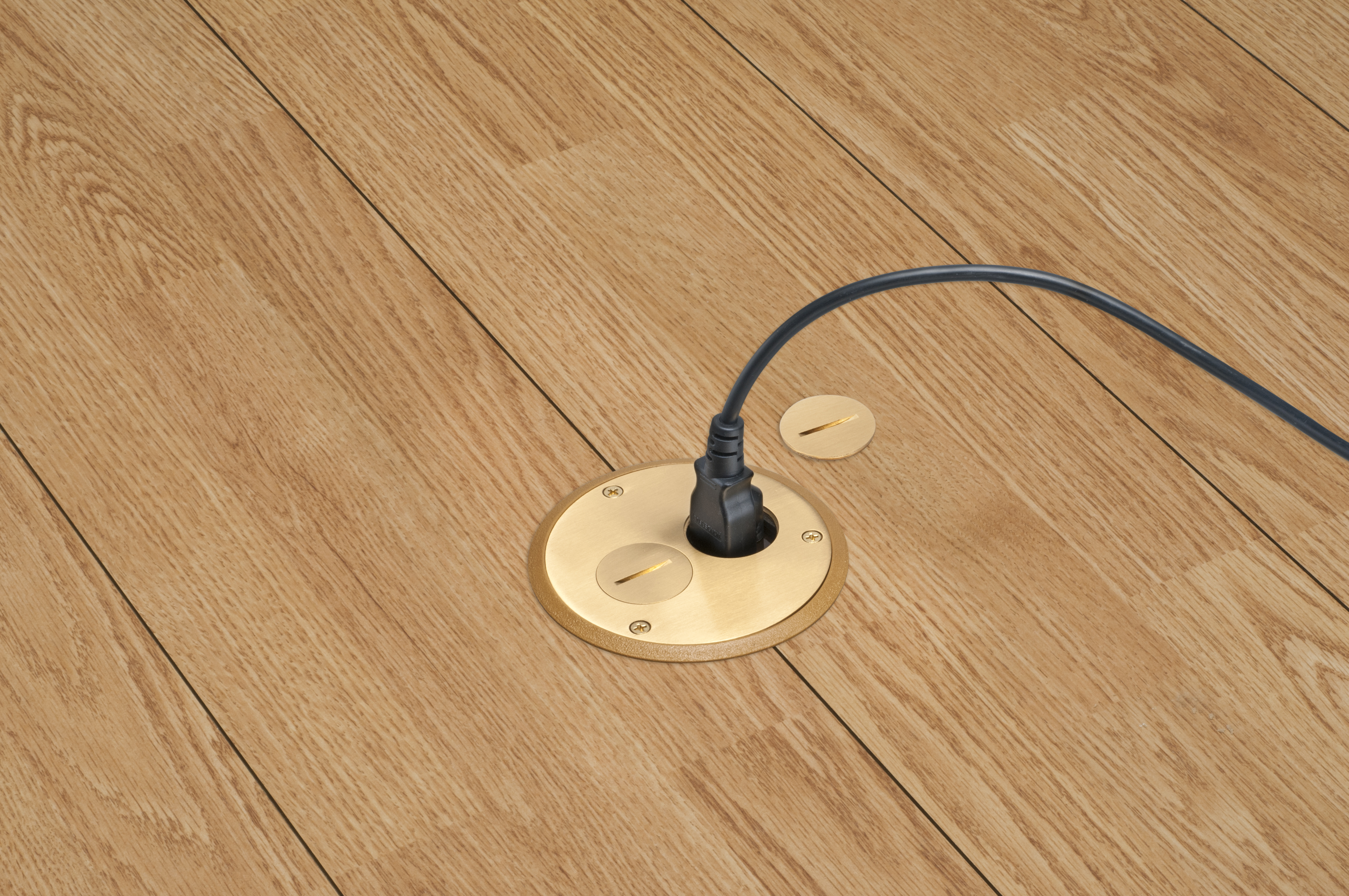

floor box in wooden floor with device plugged into receptacle

floor box in wooden floor with device plugged into receptacle

floor box in wooden floor with device plugged into receptacle

floor box in wooden floor with device plugged into receptacle

carpet ring for floor box

floor box in carpeted floor with device plugged into receptacle

floor box in carpeted floor with device plugged into receptacle

Basic Information

Part Number	FLB4362MB
Description	Brass, round cover kit box with threaded plugs and blank cover.
UPC	018997098108
Unit Packaging	1pc
Standard Packaging	1pc

Physical Information

Instructional Video	FLB4362MB Instructional Video
Weight	1.100 lbs/each
Height	6.250"
Width	6.250"
Color	Brass
Cover Color	Brass
Material(s)	Brass/Plastic

Technical Information

Line Drawing	FLB4362MB Line Drawing
Trade Size	1 Gang

Comes With

(2)	Threaded Plugs
(1)	NM95 Cable Connector
(1)	NM94 Cable Connector
(1)	Mounting Bracket
(1)	Gasket support plate
(1)	Gasket
(1)	Cover
(1)	Carpet Ring
(1)	Box
(1)	15A Tamper-Resistant Duplex Receptacle
(3)	#8 x 1/2" Long Screws
(1)	#6 x 1/2" Long Screw
