DBHM1C Product InformationLow Profile InBox™ for New Stucco, Textured Surfaces, and Rigid Siding Specification SheetCatalog Page E-mail |
Basic Information
| Part Number | DBHM1C |
| Description | Low profile inbox for new construction stucco, textured surfaces and rigid siding. Horizontal with Clear Cover. |
| UPC | 018997776082 |
| Unit Packaging | 1pc |
| Standard Packaging | 4pcs |
| Country of Origin |  |
| Listing |
|
| Available w/ Grounding Clip | Yes - Order Part Number DBHM1CGC |
Physical Information
| Instruction Sheet | DBHM1C Instruction Sheet |
| Weight | 1.040 lbs/each |
| Height | 7.012" |
| Width | 9.058" |
| Color |  White |
| Cover Color |  Clear |
| Material(s) | UV-Rated Plastic |
Technical Information
| Line Drawing | DBHM1C Line Drawing |
| NEC Compliance | Meets 2021 NEC Section 406.9 (B) for the protection of exterior outlets which require the use of an extra-duty weatherproof while-in-use cover for all outdoor 15 or 20 AMP receptacles. |
| Style | Horizontal |
| Trade Size | 1-Gang |

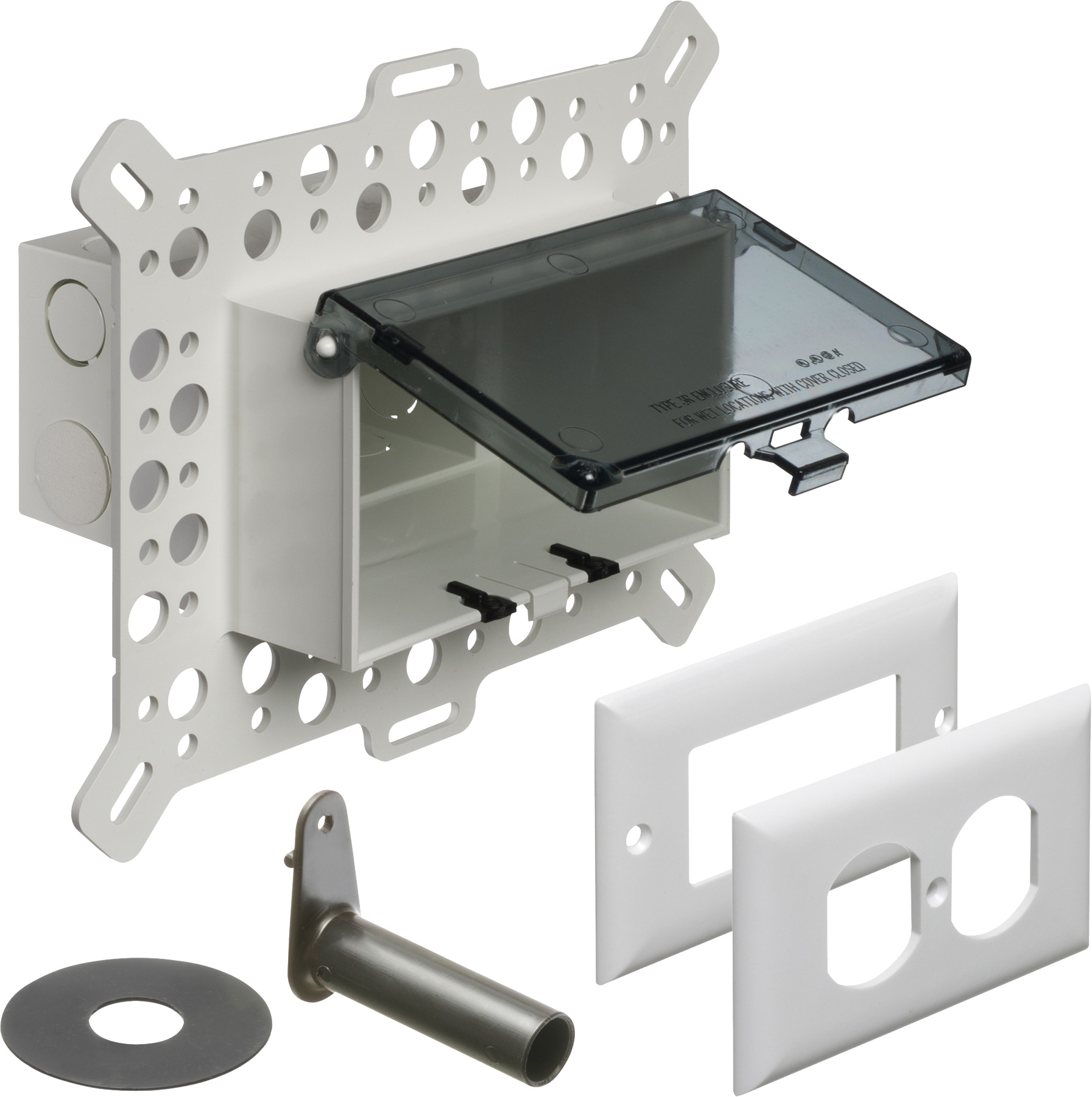

Comes With
| (1) | Weatherproof-in-use extra-duty cover |
| (1) | Single-Gang Wall Plate with screw(s) |
| (1) | Single-Gang Decorator-Style / GFCI Wall Plate with screws |
| (1) | NM94 Cable Connector |
| (1) | Mud Cover |
| (2) | Bug Plugs |
| (1) | Box |
| (1) | Block bushing with washer |
