FLBC101LA Product InformationNon-Metallic Floor Boxes for New Concrete Pours Specification SheetCatalog Page E-mail |
Additional Images
Basic Information
| Part Number | FLBC101LA |

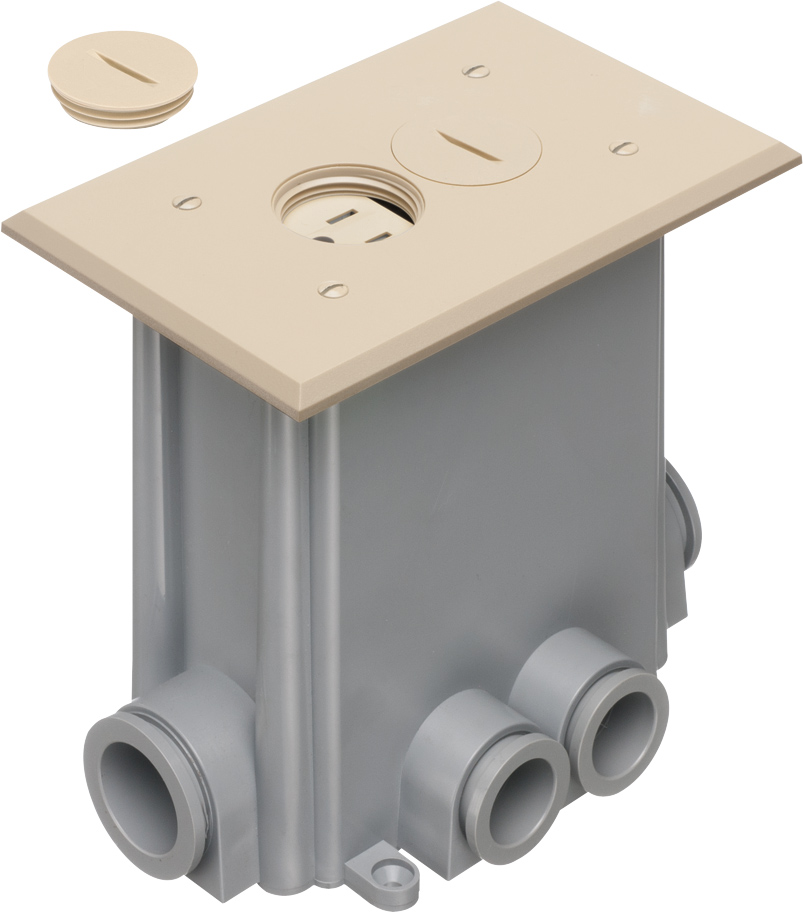

| Description | Non Metallic concrete floor box with non metallic covers for new concrete pours. Light Almond with Threaded plugs. Includes Box, Mud Cover, Four 3-1/4 plugs, two 1" plugs, 1/8" spacer 1/4" spacer. one 1/2" spacer, one 3/4" spacer, Mounting bracket, Duplex receptacle, Gasketed cover plate. |
| UPC | 018997043535 |
| Unit Packaging | 1pc |
| Standard Packaging | 1pc |
| Country of Origin |  |
| Listing |
|
Physical Information
| Instructional Video | FLBC101LA Instructional Video |
| Instruction Sheet | FLBC101LA Instruction Sheet |
| Weight | 1.898 lbs/each |
| Height | 6.500" |
| Width | 4.125" |
| Color |  Light Almond (Cover) |
| Material(s) | Plastic |
Technical Information
| Line Drawing | FLBC101LA Line Drawing |
| Submittal Drawing | FLBC101LA Submittal Drawing |
| Style | Non-metallic floor box, rectangular cover with threaded plugs |
| Trade Size | 1-Gang |

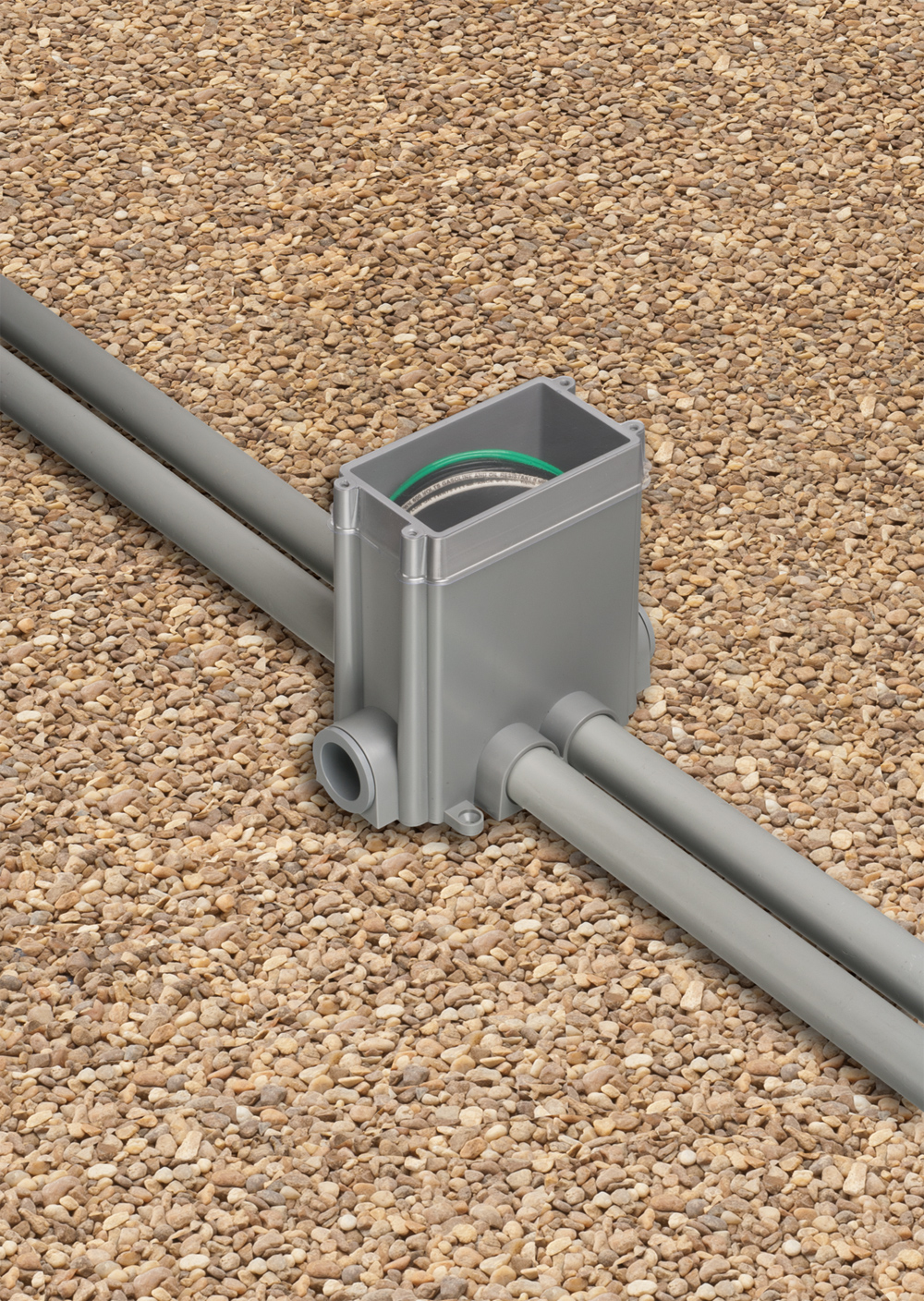

| Usage | New concrete pours |

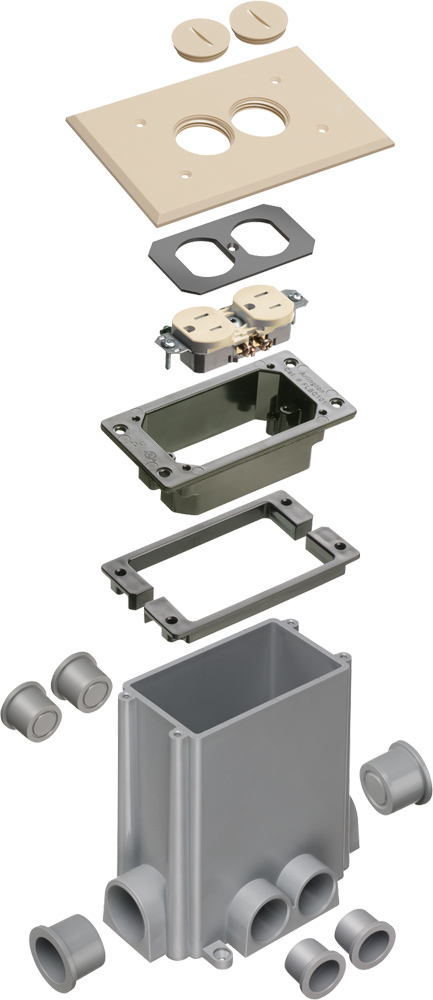

Comes With
| (2) | Threaded Plugs |
| (1) | Tamper-Resistant Duplex Receptacle |
| (1) | Mud Cover |

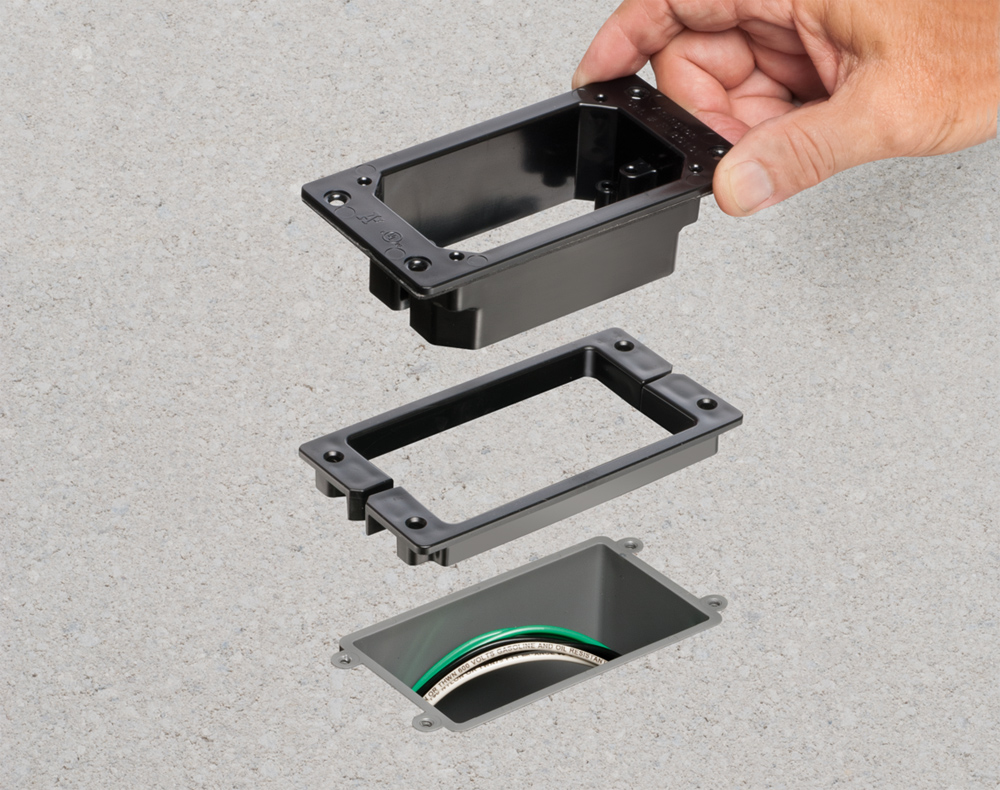

| (1) | Mounting bracket with gasket |
| (1) | Cover plate with gasket |
| (1) | Concrete Box |
| (1) | Back Plate |
| (1) | 3/4" Spacer Set |
| (4) | 3/4" Plugs |
| (1) | 1/8" Spacer Set |
| (1) | 1/4" Spacer Set |
| (1) | 1/2" Spacer Set |
| (2) | 1" Plugs |
| (4) | #8 x 5/8" Long Sheet Metal Screws |
| (4) | #8 x 1-1/4" Long Sheet Metal Screws |
| (5) | #6-32 x 1/2" Long Screws |
